ELM312 Datasheet, Controller, ELM Electronics

ELM312 Features

• Controller
• Low power CMOS design - typically 1mA at 5V
• Wide supply range - 3.0 to 5.5 volt operation
• Two inputs control Half step motion
• No external timing

PDF File Details

Part number:

ELM312

Manufacturer:

ELM Electronics

File Size:

23.43kb

Download:

📄 Datasheet

Description:

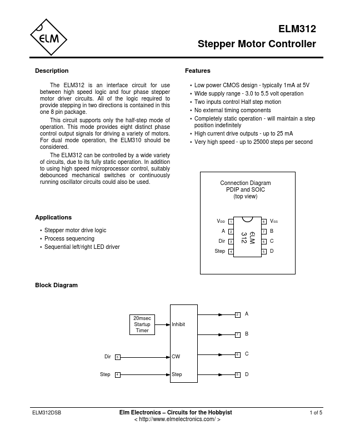

Stepper motor controller. The ELM312 is an interface circuit for use between high speed logic and four phase stepper motor driver circuits. All of the logic re

ELM312 Application

• Applications
• Stepper motor drive logic
• Process sequencing
• Sequential left/right LED driver VDD 1 A2 Dir 3 Step 4 8 V
