ELM303 - Camcorder Time-Lapse Control

Product Overview

ELM Electronics

📥 Download Datasheet

ELM303 Camcorder Time-Lapse Control by ELM Electronics - Datasheet Preview — Datasheet preview – ELM303

Datasheet Details

Part number	ELM303
Manufacturer	ELM Electronics
File Size	26.29 KB
Description	Camcorder Time-Lapse Control
Datasheet	ELM303 Datasheet
Additional preview pages of the ELM303 datasheet.

Product details

Description

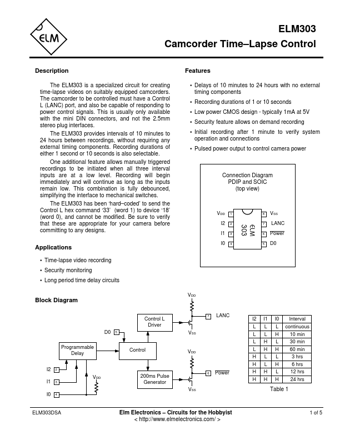

The ELM303 is a specialized circuit for creating time-lapse videos on suitably equipped camcorders.

Features

Delays of 10 minutes to 24 hours with no external timing components.
Recording durations of 1 or 10 seconds.
Low power CMOS design - typically 1mA at 5V.
Security feature allows on demand recording.
Initial recording after 1 minute to verify system operation and connections.
Pulsed power output to control camera power Connection Diagram PDIP and SOIC (top view) VDD 1 I2 2 I1 3 I0 4 8 VSS 7 LANC 6 Power 5 D0 VDD 7 LANC VSS VDD 6 Power VSS.
