ELM311 Datasheet, Controller, ELM Electronics

ELM311 Features

  • Controller
  • Low power CMOS design - typically 1mA at 5V
  • Wide supply range - 3.0 to 5.5 volt operation
  • Two inputs control Full step motion
  • No external timing

PDF File Details

Part number:

ELM311

Manufacturer:

ELM Electronics

File Size:

23.28kb

Download:

📄 Datasheet

Description:

Stepper motor controller. The ELM311 is an interface circuit for use between high speed logic and four phase stepper motor driver circuits. All of the logic re

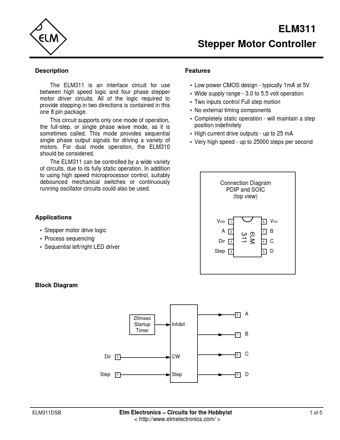

Datasheet Preview: ELM311 📥 Download PDF (23.28kb)
Page 2 of ELM311 Page 3 of ELM311

ELM311 Application

  • Applications
  • Stepper motor drive logic
  • Process sequencing
  • Sequential left/right LED driver VDD 1 A2 Dir 3 Step 4 8 V
