ELM52326BSA-S - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM52326BSA-S Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM52326BSA-S

Datasheet Details

Part number	ELM52326BSA-S
Manufacturer	ELM
File Size	669.32 KB
Description	Single N-channel MOSFET
Datasheet	ELM52326BSA-S Datasheet

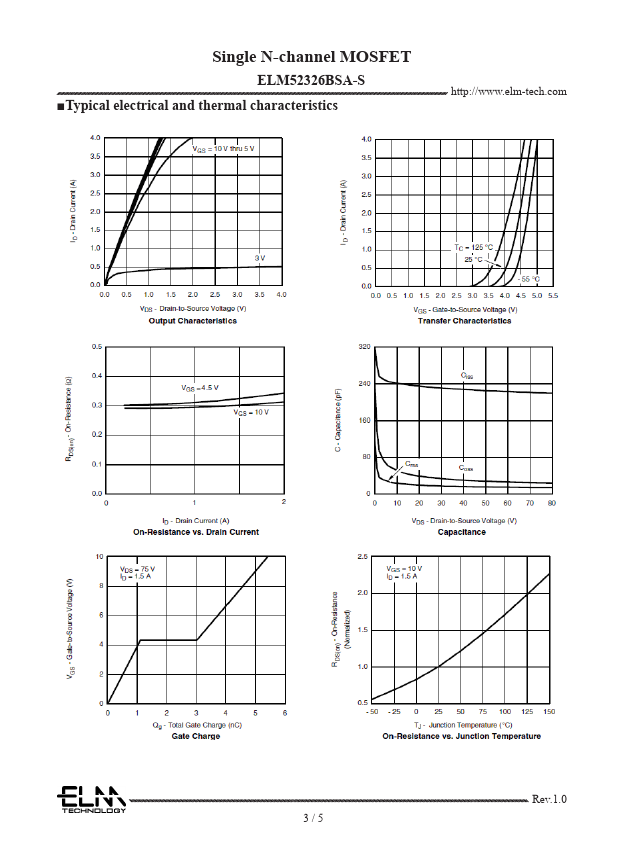

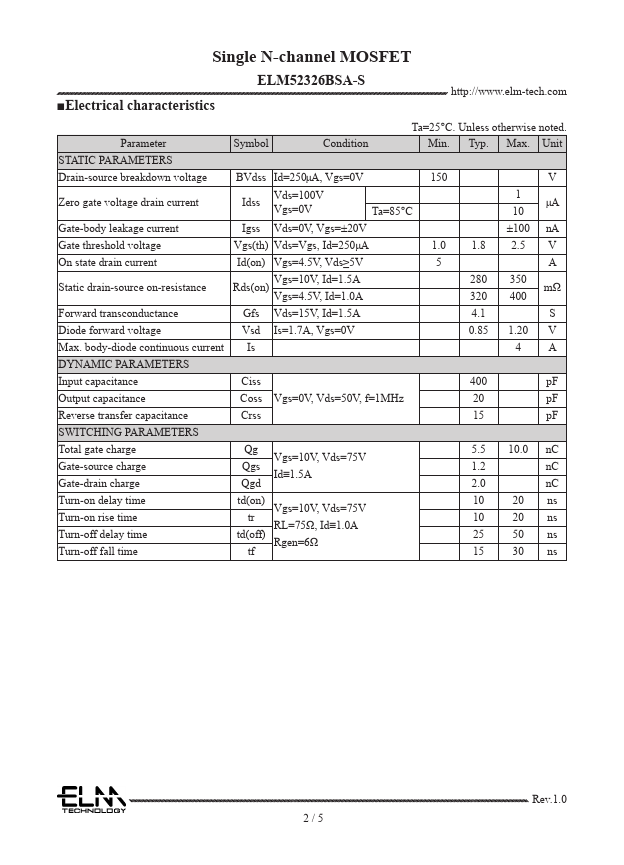

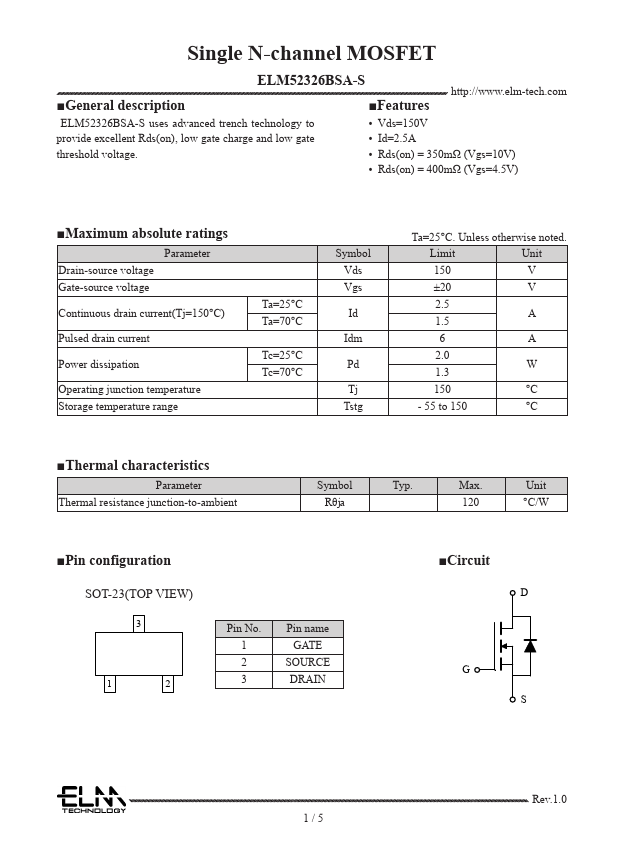

Additional preview pages of the ELM52326BSA-S datasheet.

Product details

Features

ELM52326BSA-S uses advanced trench technology to.
Vds=150V provide excellent Rds(on), low gate charge and low gate.
Id=2.5A threshold voltage.
Rds(on) = 350mΩ (Vgs=10V).
Rds(on) = 400mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds.
