EM6124

Digitally Programmable 8 to 25 Multiplex LCD Controller & Driver

EM6124 Features

* Slim IC for chip-on-board, with gold bumps for

* Applications

* Chip-On-Glas and Chip-On-Flex technologies Very simple 2-wire interface Digitally programmab

EM6124 General Description

The EM6124 is a low power CMOS LCD controller and driver. The 8, 16, 20 and 24 way multiplex are digitally programmable by the command byte. One additional line can be added for Icons or Inverted Video by programming 9, 17, 21 or 25 way multiplex. The display refresh is handled on chip by an interna.

EM6124 Datasheet (2.87 MB)

Preview of EM6124 PDF

Datasheet Details

Part number:

EM6124

Manufacturer:

EM Microelectronic

File Size:

2.87 MB

Description:

Digitally programmable 8 to 25 multiplex lcd controller & driver.

📁 Related Datasheet

EM61200 8-Channel Wave-table Music Synthesizer (ELAN Microelectronics)

EM61200 8-Channel Wave-Table Music Synthesizer (ELAN Microelectronics)

EM6121 LCD Controller and Driver Character Generator ROM and RAM inside (EM Microelectronic)

EM6125 Digitally programmable 65 and 81 multiplex rate LCD Controller and Driver (EM Microelectronic)

EM6126 81 and 65 MUX LCD Controller and Driver (EM Microelectronic)

EM6128K1600V 128Kx8 LP SRAM (Eorex Corporation)

EM6128K800V 128Kx8 LP SRAM (Eorex Corporation)

EM61000 8-Channel Wave-Table Music Synthesizer (ELAN Microelectronics)

EM61001 8-Channel Wave-Table Music Synthesizer (ELAN Microelectronics)

EM61002 8-Channel Wave-Table Music Synthesizer (ELAN Microelectronics)

TAGS

EM6124 Digitally Programmable Multiplex LCD Controller Driver EM Microelectronic

Image Gallery

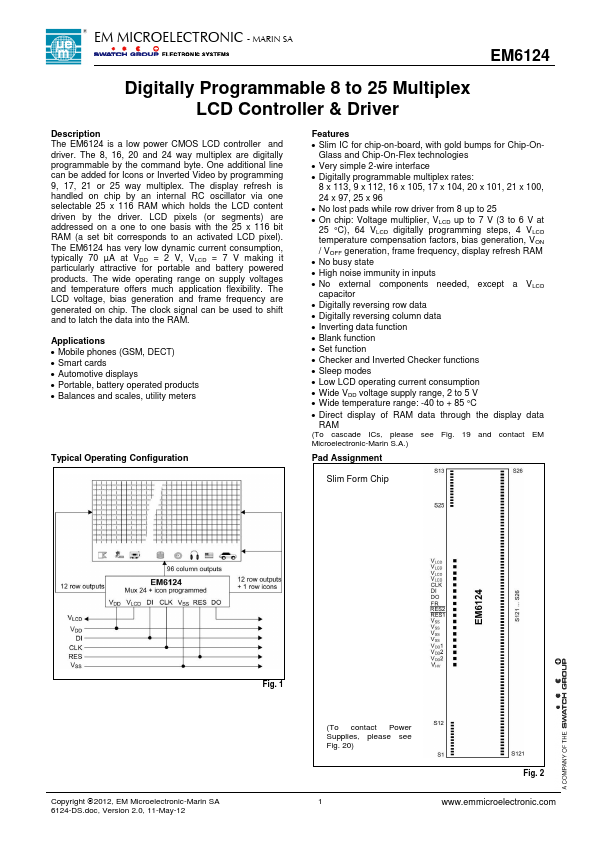

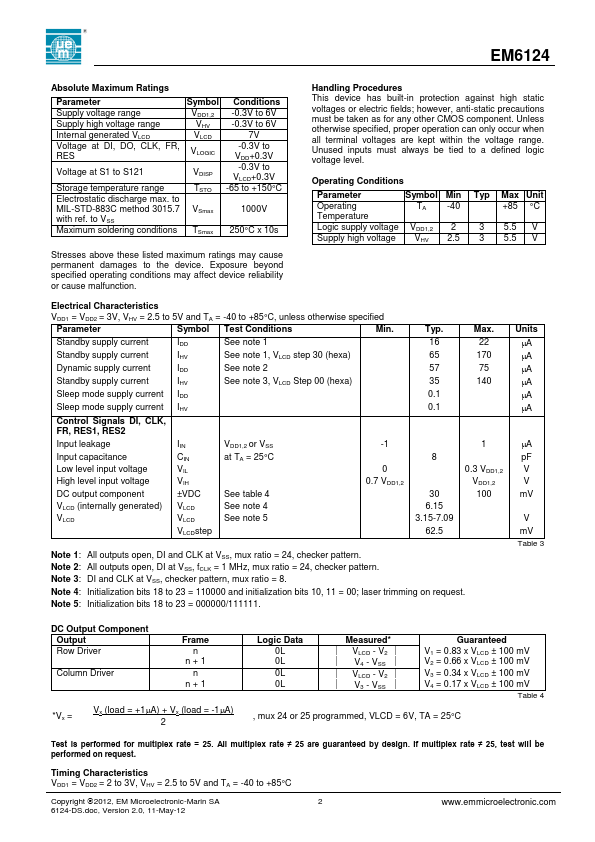

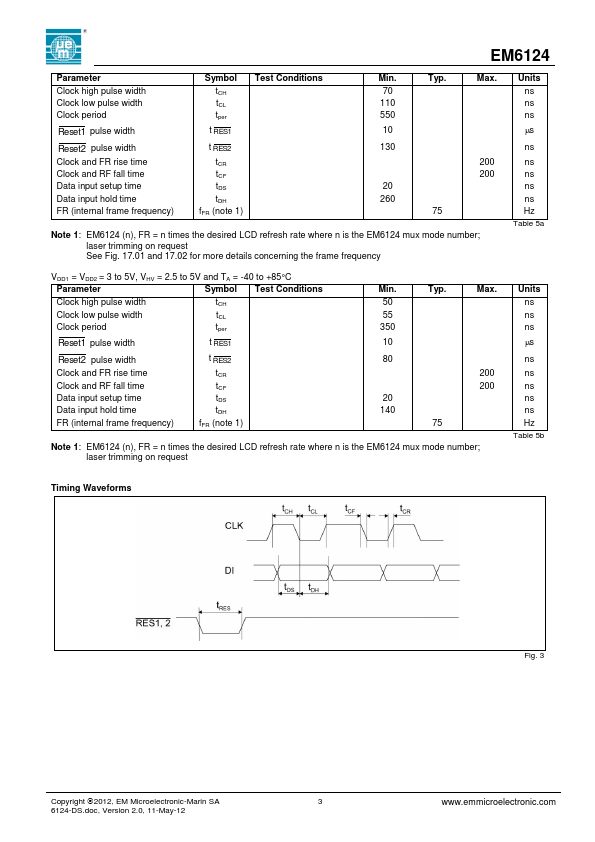

EM6124 Datasheet Preview Page 2 EM6124 Datasheet Preview Page 3
