EM6126 - Digitally programmable 65 and 81 multiplex rate LCD Controller and Driver

EM6126 Description

EM MICROELECTRONIC - MARIN SA EM6126 Digitally programmable 65 and 81 multiplex rate LCD Controller and Driver .
The EM6126 is a bit map controller and driver for full dot matrix monochrome STN LCD displays.

EM6126 Features

* Slim IC for COG, COF and COB technologies
* I2C & Serial bus interface
* Internal display data RAM
* 2 digitally programmable multiplex rates : - 81 rows x 102 columns - 65 rows x 118 columns
* LCD supply voltage internally generated and digitally programmable from 4.5V to 11V

EM6126 Applications

* Mobile phones
* Smart cards
* Portable, battery operated products
* Balances and scales, utility meters Typical Operating Configuration 41 row drivers 40 row drivers 102 columns outputs EM6126 SDA SCL VLCD RES Vss1 Vss2 VDD1 VDD2 VHV Pin Configuration Figure 1 S13 Mark 4 S1

📥 Download Datasheet

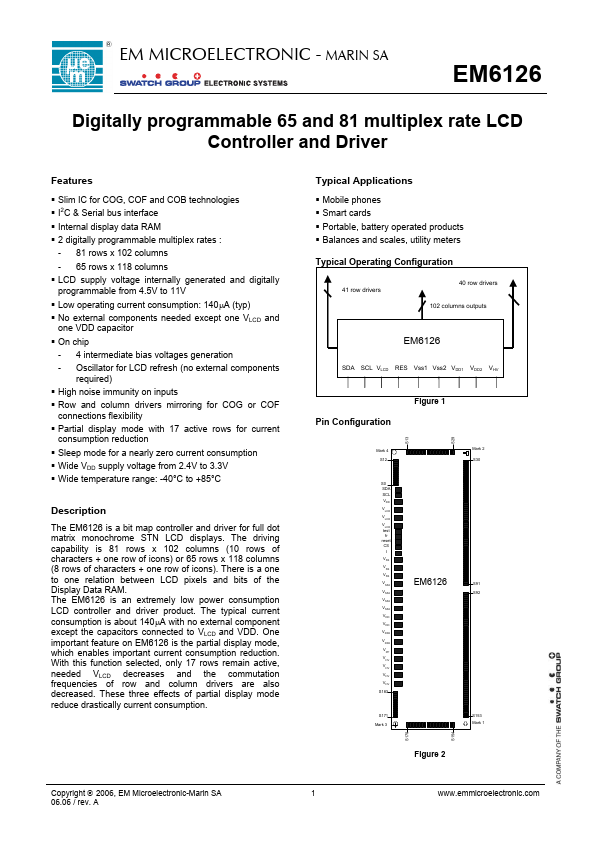

Preview of EM6126 PDF

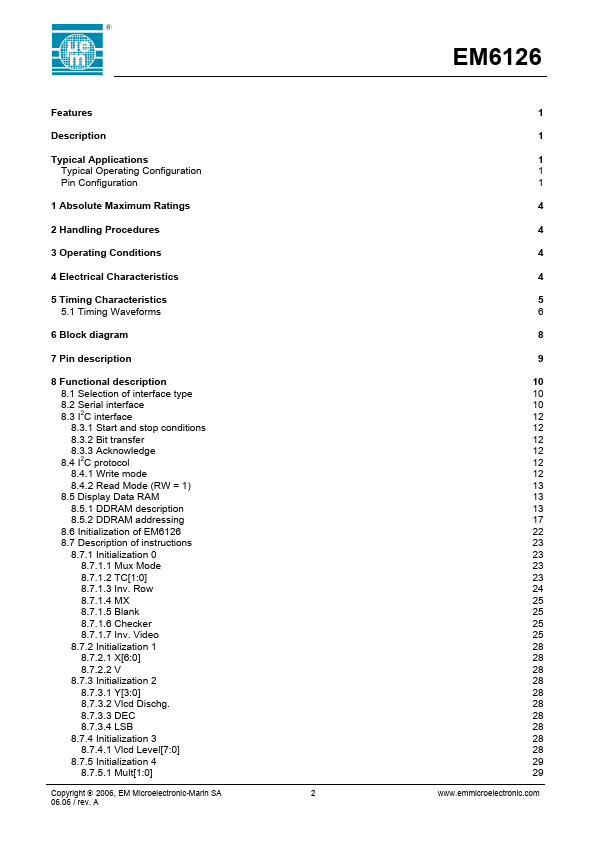

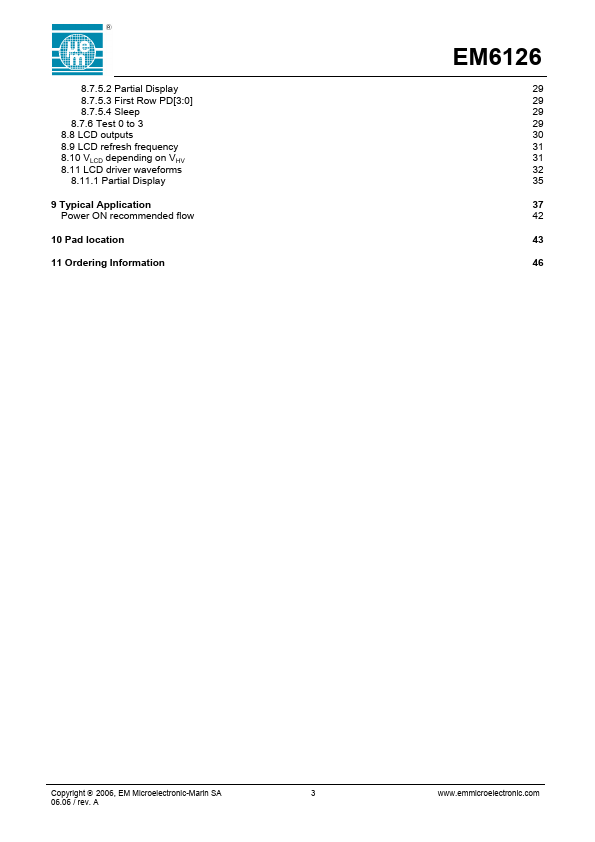

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EM6126
Manufacturer
EM Microelectronic
File Size
1.24 MB
Datasheet
EM6126_EMMicroelectronic.pdf
Description
Digitally programmable 65 and 81 multiplex rate LCD Controller and Driver
