EM8504 POWER MANAGEMENT CONTROLLER

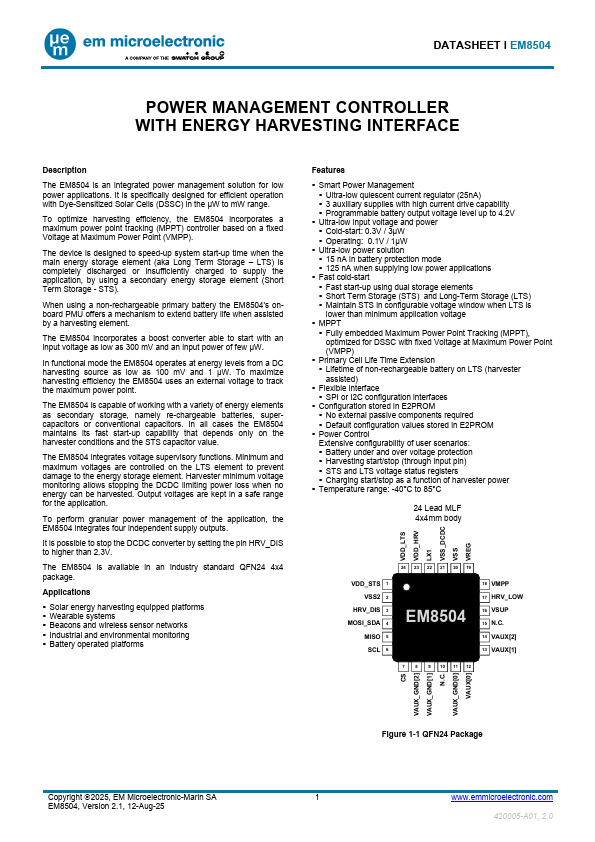

📥 Download Datasheet Datasheet Preview Page 1

Description

DATASHEET Ɩ EM8504 POWER MANAGEMENT CONTROLLER WITH ENERGY HARVESTING INTERFACE .
The EM8504 is an integrated power management solution for low power applications.

📥 Download Datasheet

Preview of EM8504 PDF

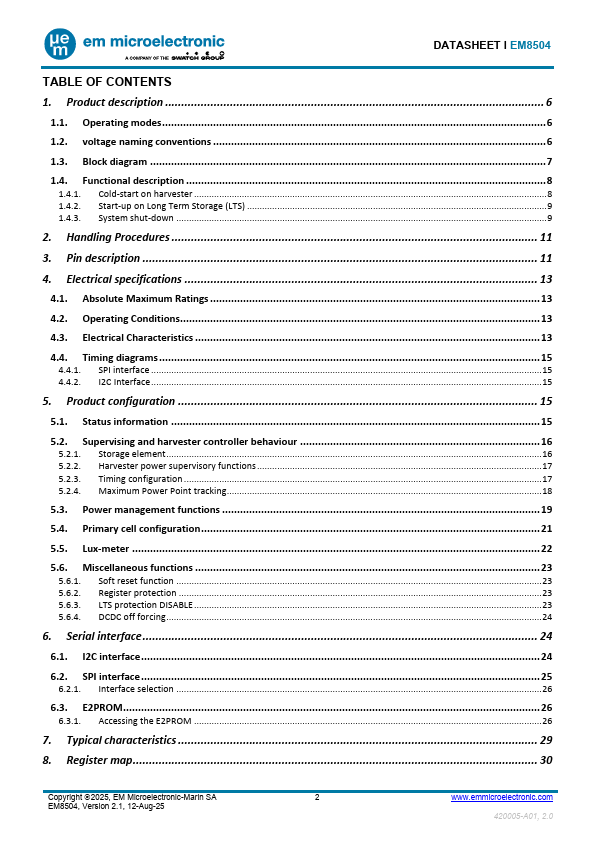

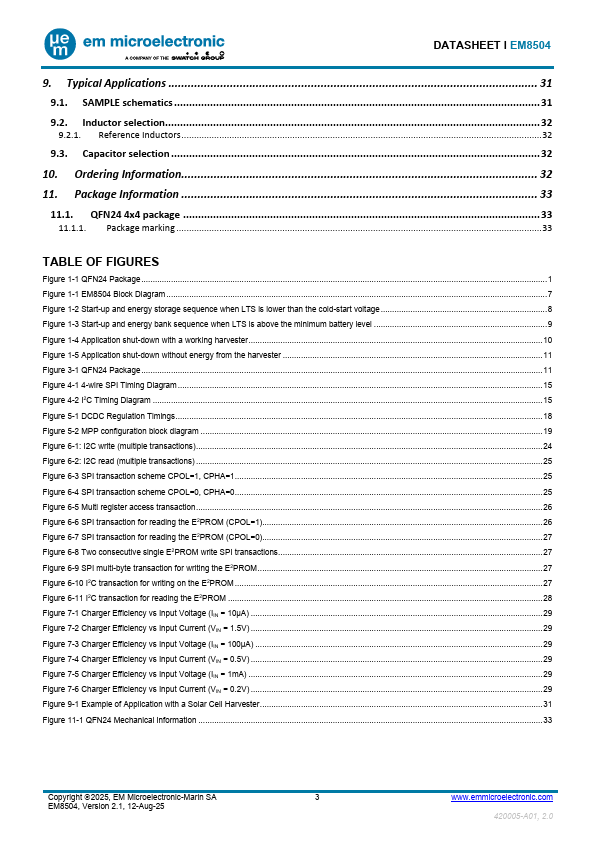

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
EM8504
Manufacturer
EM Microelectronic
File Size
1.29 MB
Datasheet
EM8504-EMMicroelectronic.pdf
Description
POWER MANAGEMENT CONTROLLER

Features

* ▪ Smart Power Management ▪ Ultra-low quiescent current regulator (25nA) ▪ 3 auxiliary supplies with high current drive capability ▪ Programmable battery output voltage level up to 4.2V ▪ Ultra-low input voltage and power ▪ Cold-start: 0.3V / 3µW ▪ Operating: 0.1V / 1µW ▪ Ultra-low power solution ▪ 1

Applications

* It is specifically designed for efficient operation with Dye-Sensitized Solar Cells (DSSC) in the µW to mW range. To optimize harvesting efficiency, the EM8504 incorporates a maximum power point tracking (MPPT) controller based on a fixed Voltage at Maximum Power Point (VMPP). The device is designe
