EM8559A

PWM Converter

EM8559A Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8559A also has line under-voltage protection (Brown-out Protection). Features 600V High Voltage Start up Circuit Current Mode Control Soft Start Func

EM8559A General Description

EM8559A is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving. The EM8559A integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation..

EM8559A Datasheet (295.98 KB)

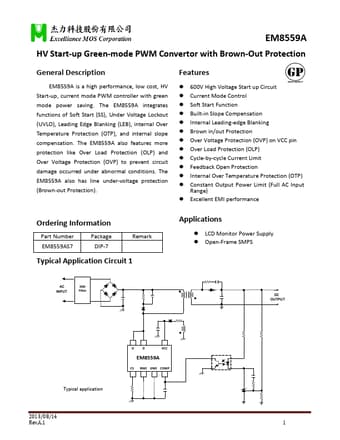

Preview of EM8559A PDF

Datasheet Details

Part number:

EM8559A

Manufacturer:

Excelliance MOS

File Size:

295.98 KB

Description:

Pwm converter.
