EM8562

PWM Converter

EM8562 Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8562 also has line under-voltage protection (Brown-out Protection). Features 700V High Voltage Start up Circuit Current Mode Control Soft Start Funct

EM8562 General Description

EM8562 is a high performance, low cost, HV Start-up, current mode PWM converter with green mode power saving. The EM8562 integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation. Th.

EM8562 Datasheet (305.60 KB)

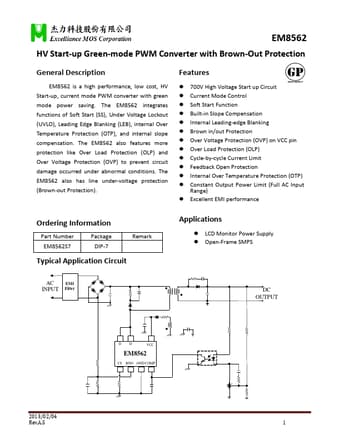

Preview of EM8562 PDF

Datasheet Details

Part number:

EM8562

Manufacturer:

Excelliance MOS

File Size:

305.60 KB

Description:

Pwm converter.
