EM8565D

HV Start-up Green-mode PWM Convertor

EM8565D Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. And has line under-voltage protection (Brown-out Protection). Ordering Information Part Number EM8565DS7 Package DIP-7 Remark Features

* 650V High

EM8565D General Description

EM8565D is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving. It integrates an advanced PWM and 650V power MOSFET a single package, provides the users a superior power designs with higher efficiency, reduced size, improved reliability, and lower pow.

EM8565D Datasheet (694.67 KB)

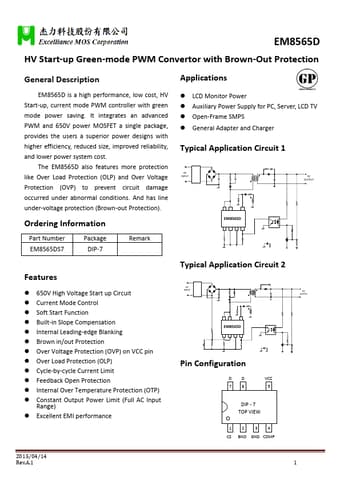

Preview of EM8565D PDF

Datasheet Details

Part number:

EM8565D

Manufacturer:

Excelliance MOS

File Size:

694.67 KB

Description:

Hv start-up green-mode pwm convertor.
