EM8564A

PWM Converter

EM8564A Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8564A also has line under-voltage protection (Brown-out Protection). Features 650V High Voltage Start up Circuit Current Mode Control Soft Start Func

EM8564A General Description

EM8564A is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving. The EM8564A integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation..

EM8564A Datasheet (312.66 KB)

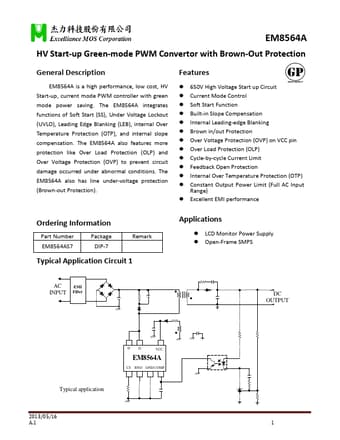

Preview of EM8564A PDF

Datasheet Details

Part number:

EM8564A

Manufacturer:

Excelliance MOS

File Size:

312.66 KB

Description:

Pwm converter.
