EN35SXR256A 256 Megabit 1.8V Serial Flash Memory

EON

Description

EN35SXR256A (2PC) EN35SXR256A (2PC) 256 Megabit 1.8V Serial Flash Memory with 4Kbyte UniformprSeelicmtoinrary .
The device is a 256 Megabit (32,768K-byte) Serial Flash memory, with advanced write protection mechanisms.

📥 Download Datasheet

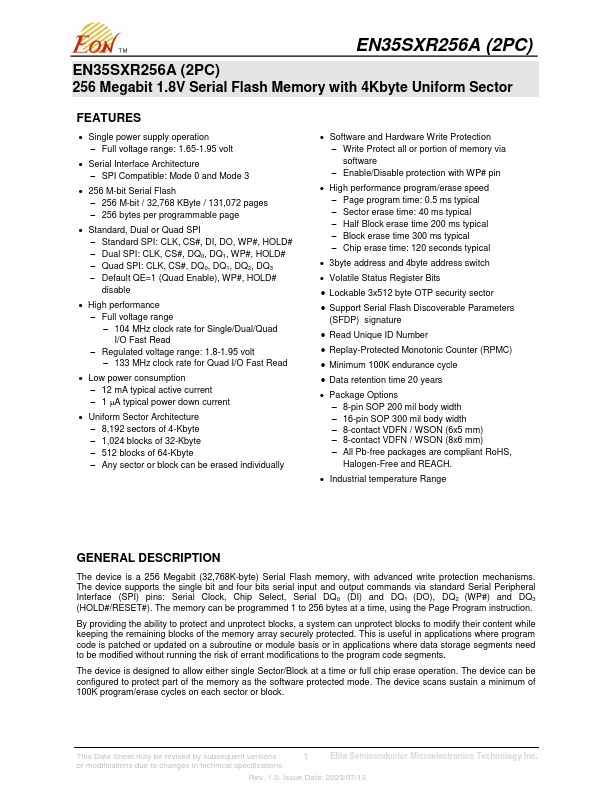

EN35SXR256A Datasheet Preview — Preview of EN35SXR256A PDF

Datasheet Specifications

Part number: EN35SXR256A
Manufacturer: EON
File Size: 2.79 MB
Datasheet: EN35SXR256A-EON.pdf
Description: 256 Megabit 1.8V Serial Flash Memory

Features

* Single power supply operation
* Full voltage range: 1.65-1.95 volt
* Serial Interface Architecture
* SPI Compatible: Mode 0 and Mode 3
* 256 M-bit Serial Flash
* 256 M-bit / 32,768 KByte / 131,072 pages
* 256 bytes per programmable page
* Standard, D

Applications

* where program code is patched or updated on a subroutine or module basis or in applications where data storage segments need to be modified without running the risk of errant modifications to the program code segments. The device is designed to allow either single Sector/Block at a time or full chip
