EN35SXR128A 128 Megabit 1.8V Serial Flash Memory

EON

Description

EN35SXR128A (2PC) EN35SXR128A (2PC) 128 Megabit 1.8V Serial Flash Memory with 4Kbyte Uniform Sector .
The device is a 128 Megabit (16,384K-byte) Serial Flash memory, with advanced write protection mechanisms.

📥 Download Datasheet

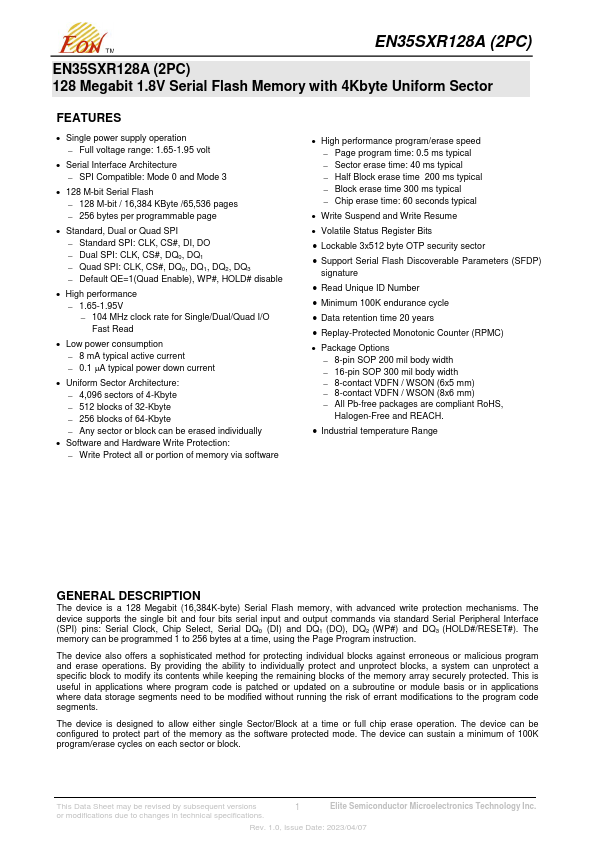

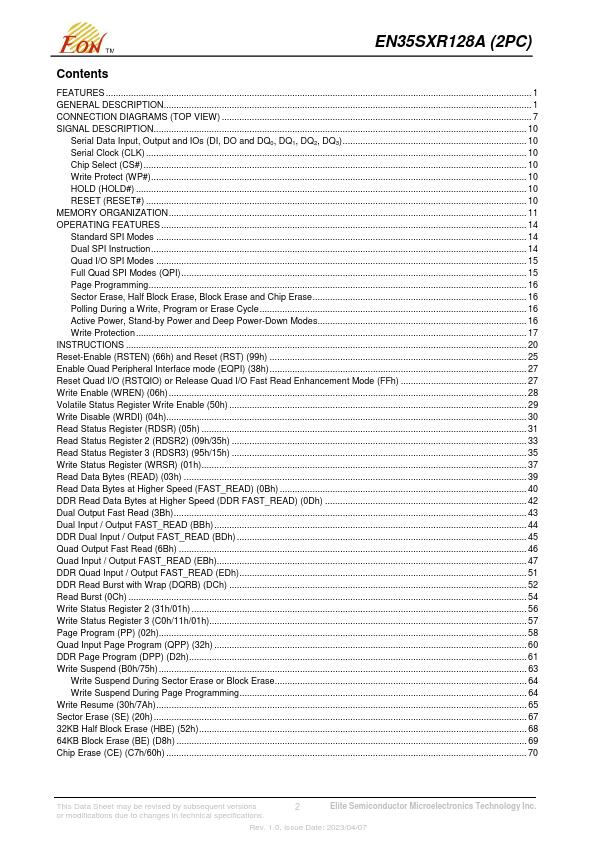

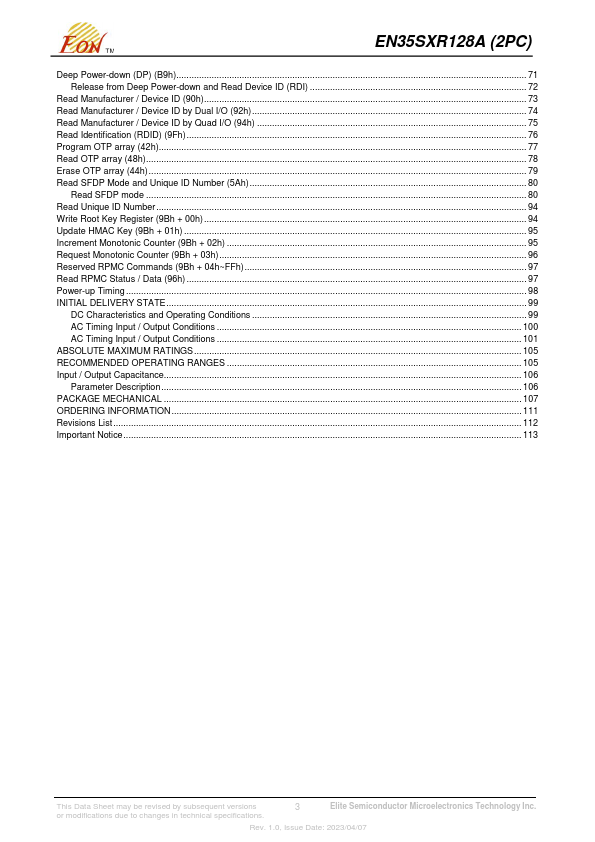

EN35SXR128A Datasheet Preview — Preview of EN35SXR128A PDF

Datasheet Specifications

Part number: EN35SXR128A
Manufacturer: EON
File Size: 2.46 MB
Datasheet: EN35SXR128A-EON.pdf
Description: 128 Megabit 1.8V Serial Flash Memory

Features

* Single power supply operation
* Full voltage range: 1.65-1.95 volt
* Serial Interface Architecture
* SPI Compatible: Mode 0 and Mode 3
* 128 M-bit Serial Flash
* 128 M-bit / 16,384 KByte /65,536 pages
* 256 bytes per programmable page

Applications

* where program code is patched or updated on a subroutine or module basis or in applications where data storage segments need to be modified without running the risk of errant modifications to the program code segments. The device is designed to allow either single Sector/Block at a time or full chip
