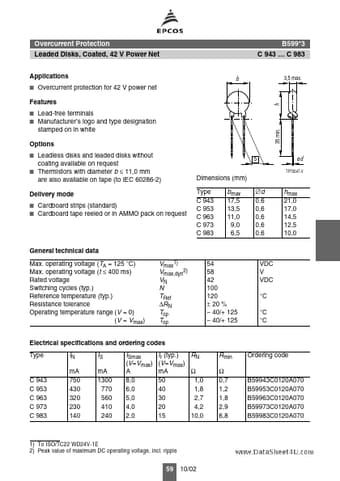

B59943 (B599x3) Overcurrent Protection Leaded Disks

Overcurrent Protection Leaded Disks, Coated, 42 V Power Net Applications I Overcurrent protection for 42 V power net B599 3 C 943 … C 983 b 3,5 max. I Lead-free terminals I Manufacturer’s logo and type designation Options I Leadless disks and leaded disks without coating available on request I Thermistors with diameter b ≤ 11,0 mm are also available on tape (to IEC 60286-2) Delivery mode I Cardboard strips (standard) I Cardboard tape reeled or in AMMO pack on request 5 35 min. stamp.

B59943 Features

* ød TPT0647-V Dimensions (mm) Type C 943 C 953 C 963 C 973 C 983 bmax 17,5 13,5 11,0 9,0 6,5 ∅d 0,6 0,6 0,6 0,6 0,6 hmax 21,0 17,0 14,5 12,5 10,0 General technical data Max. operating voltage (TA = 125 °C) Max. operating voltage (t ≤ 400 ms) Rated voltage Switching cycles (typ.) Reference temper
