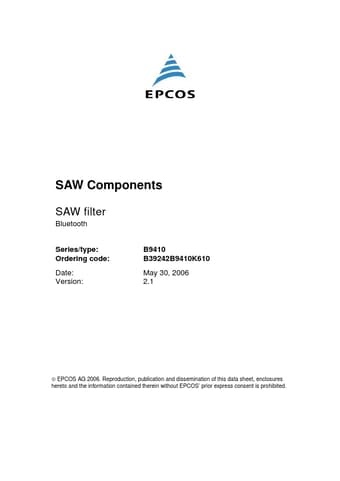

www.DataSheet4U.com SAW Components SAW filter Bluetooth Series/type: Ordering code: Date: Version: B9410 B39242B9410K610 May 30, 2006 2.1 © EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components SAW filter Data Sheet Application s Low-loss RF filter for mobile telephone s s s s s B9410 2441.75 MHz bluetooth systems Impedance transformation from.
B9410 Features
* s s s s s s s
0,4
Package size 1.4 x1.1 x 0.4 mm3 Package code QCS5F RoHS compatible Approximate weight 0.003 g Package for Surface Mount Technology (SMT) Ni, gold-plated terminals Electrostatic Sensitive Device (ESD)
0,325
2 1
3
0,575
0,25
bottom view
5 0,5 0,5
4
side view
1,4 1,1
top v
