B9415 SAW Components
and specifications contained in this publication are still applicable before or when you place an order. We also reserve the right to discontinue production and delivery of products. Consequently, we cannot guarantee that all products named in this publication will always be available. Unless otherw.

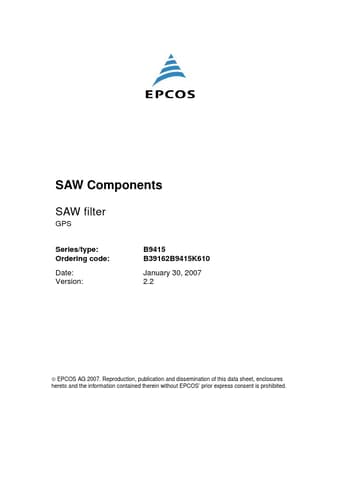

www.DataSheet4U.com SAW Components SAW filter GPS Series/type: Ordering code: Date: Version: B9415 B39162B9415K610 January 30, 2007 2.2 © EPCOS AG 2007. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components SAW filter Data sheet Application s Low-loss RF filter for mobile telephone s s s s s B9415 1575.42 MHz GPS systems Filter impedance 50 Ω Unbalanced to u.
B9415 Features
* s s s s s s s
0,4
Package size 1.4 x1.1 x 0.4 mm3 Package code QCS5F RoHS compatible Approximate weight 0.003 g Package for Surface Mount Technology (SMT) Ni, gold-plated terminals Electrostatic Sensitive Device (ESD)
0,325
2 1
3
0,575
0,25
bottom view
5 0,5 0,5
4
side view
1,4 1,1
top v
