B9412 SAW Components
and specifications contained in this publication are still applicable before or when you place an order. We also reserve the right to discontinue production and delivery of products. Consequently, we cannot guarantee that all products named in this publication will always be available. Unless otherw.

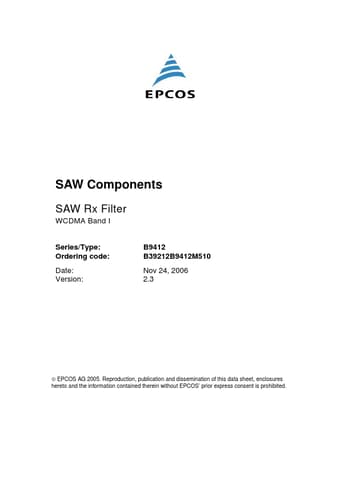

www.DataSheet4U.com SAW Components SAW Rx Filter WCDMA Band I Series/Type: Ordering code: Date: Version: B9412 B39212B9412M510 Nov 24, 2006 2.3 © EPCOS AG 2005. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components Low-Loss Filter for Mobile Communication Data Sheet Application s Low-loss RF filter for mobile telephone B9412 2140.0 MHz WCDMA system (Band I),.
B9412 Features
* 0,325
Package size 1.4 x 1.1 x 0.4 mm3 Package code DCT6A RoHS compatible Approx. weight 0.003 g Package for Surface Mount Technology (SMT) s Ni, gold-plated terminals s Electrostatic Sensitive Device (ESD)
s s s s s
3
0,575
0,25 1 2
bottom view
6
5
4
0,5 0,5
0,4 max
side view
1,4
1,1
