RX-8564LC Datasheet - EPSON Electronics

RX-8564LC REAL TIME CLOCK MODULE

Real time clock module Low current consumption / Small size, low profile model package I2C-Bus INTERFACE REAL TIME CLOCK MODULE RX - 8564 LC Built in frequency adjusted 32.768 kHz crystal unit. Interface Type : I2C-Bus Interface (400 kHz) Operating voltage range : 1.8 V to 5.5 V Wide Timekeeper voltage range : 1.0 V to 5.5 V / Ta = +25 °C Low backup current : 275 nA / 3.0 V(Typ.) 32.768 kHz frequency output function: C-MOS output Wi.

RX-8564LC-EPSONElectronics.pdf

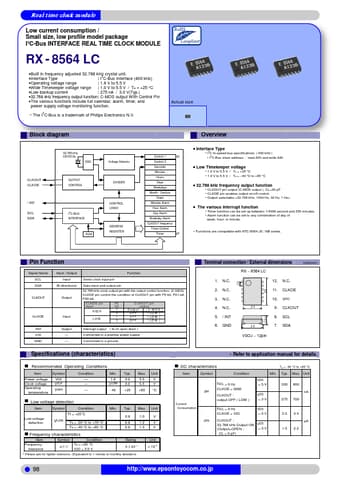

Preview of RX-8564LC PDF

Datasheet Details

Part number:

RX-8564LC

Manufacturer:

EPSON Electronics

File Size:

126.56 KB

Description:

Real time clock module.
