AD87010 2 x 20W Stereo / 1 x 40W Mono Filter-less Digital Audio Amplifier

ESMT

Description

ESMT AD87010 2X20W Stereo / 1X40W Mono Filter-less Digital Audio Amplifier With 2Vrms Line Driver .
AD87010 is an integrated audio system solution, embedding digital audio processing, power stage amplifier, and a stereo 2Vrms line driver.

📥 Download Datasheet

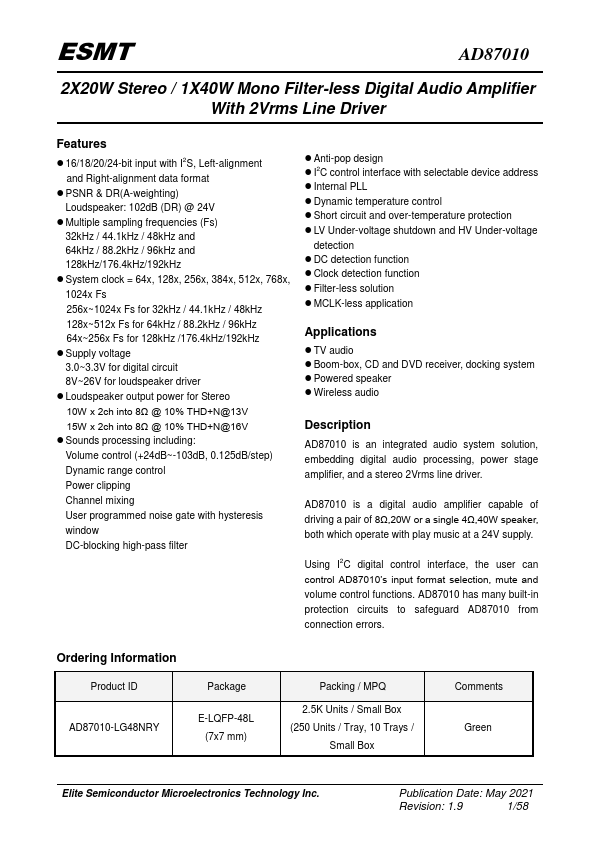

AD87010 Datasheet Preview — Preview of AD87010 PDF

Datasheet Specifications

Part number: AD87010
Manufacturer: ESMT
File Size: 1.61 MB
Datasheet: AD87010-ESMT.pdf
Description: 2 x 20W Stereo / 1 x 40W Mono Filter-less Digital Audio Amplifier

Features

* 16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format
* PSNR & DR(A-weighting) Loudspeaker: 102dB (DR) @ 24V
* Multiple sampling frequencies (Fs) 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz/176.4kHz/192kHz
* System clock = 64x, 128x, 256x

Applications

* TV audio
* Boom-box, CD and DVD receiver, docking system
* Powered speaker
