AD87088 - 2x20W Stereo / 1x40W Mono Digital Audio Amplifier

AD87088 Description

ESMT Preliminary AD87088 2x20W Stereo / 1x40W Mono Digital Audio Amplifier With 30 bands EQ and DRC Functions + 2Vrms Line Driver .
The AD87088 is an integrated audio system solution, embedding digital audio process, power stage amplifier and a stereo 2Vrms line driver.

AD87088 Features

* Supply voltage 3.3V for digital circuit 8V~26V for loudspeaker driver Supports 2.0CH/Mono configuration Loudspeaker output power@12V for stereo 7W x 2CH into 8Ω

📥 Download Datasheet

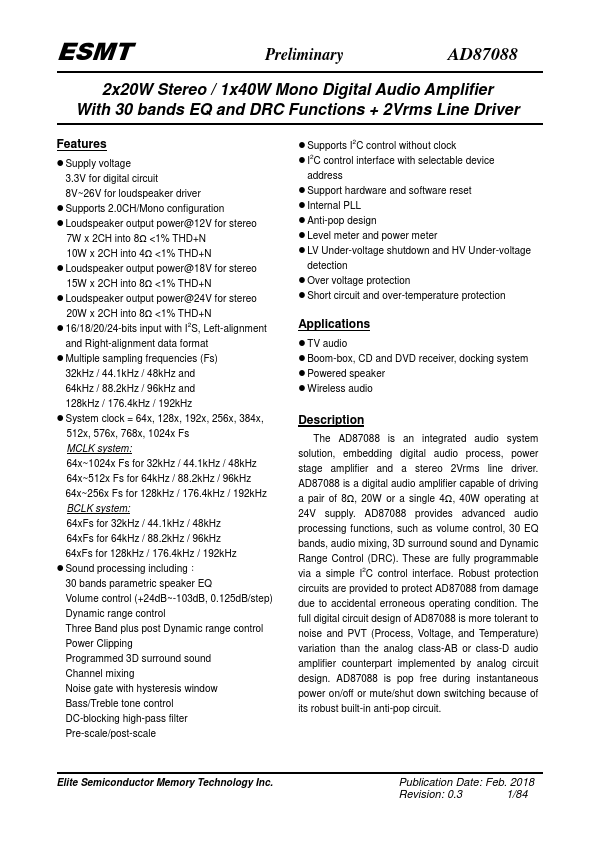

Preview of AD87088 PDF

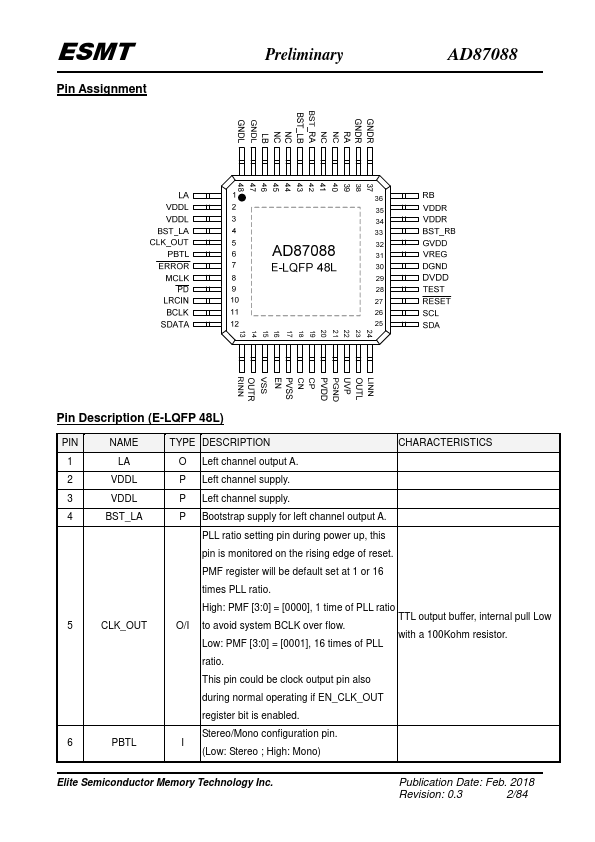

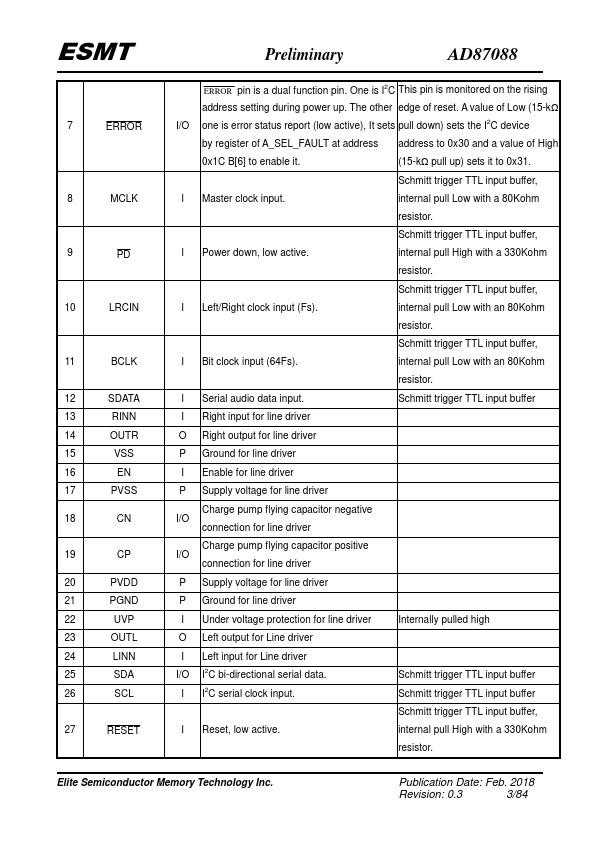

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD87088
Manufacturer
ESMT
File Size
0.97 MB
Datasheet
AD87088-ESMT.pdf
Description
2x20W Stereo / 1x40W Mono Digital Audio Amplifier
