F50L1G41LB - 3.3V 1 Gbit SPI-NAND Flash Memory

Datasheet Summary

Description

The serial electrical interface follows the industry-standard serial peripheral interface (SPI), providing a cost-effective non-volatile memory storage solution in systems where pin count must be kept to a minimum.

Features

  • Voltage Supply: 3.3V (2.7V~3.6V).
  • Organization - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit.
  • Automatic Program and Erase - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte.
  • Page Read Operation - Page Size: (2K + 64) Byte - Read from Cell to Register with Internal ECC: 100us.
  • Memory Cell: 1bit/Memory Cell.
  • Support SPI-Mode 0 and SPI-Mode 31.
  • Fast Write Cycle Time - Program time:400us - Block Erase time: 4ms.
  • Hardw.

📥 Download Datasheet

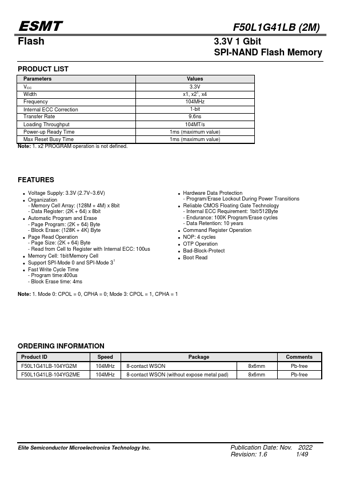

Datasheet preview – F50L1G41LB

Datasheet Details

Part number F50L1G41LB
Manufacturer ESMT
File Size 1.47 MB
Description 3.3V 1 Gbit SPI-NAND Flash Memory
Datasheet download datasheet F50L1G41LB Datasheet
Additional preview pages of the F50L1G41LB datasheet.

📁 Similar Datasheet

  • F50L1G41A - 3.3V 1 Gbit SPI-NAND Flash Memory (Elite Semiconductor)
  • F50L512M41A - 3.3V 512 Mbit SPI-NAND Flash Memory (Elite Semiconductor)
  • F5001 - RF POWER VDMOS TRANSISTOR (Polyfet RF Devices)
  • F5001H - INTELIGENT POWER SWITCH (Fuji Electric)
  • F5019 - Froide (CSF)
  • F501D - 600V Depletion-Mode Power MOSFET (Perfect Intelligent)
  • F5033 - INTELLIGENT POWER MOSFET (Fuji Electric)
  • F50N06LE - 50A/ 60V/ 0.022 Ohm/ Logic Level N-Channel Power MOSFETs (Intersil Corporation)
  • F50UP30DN - Common Cathode Fast Recovery Epitaxial Diode (Thinki Semiconductor)
Other Datasheets by ESMT

Full PDF Text Transcription

Click to expand full text
ESMT Flash PRODUCT LIST Parameters VCC Width Frequency Internal ECC Correction Transfer Rate Loading Throughput Power-up Ready Time Max Reset Busy Time Note: 1. x2 PROGRAM operation is not defined. F50L1G41LB (2M) 3.3V 1 Gbit SPI-NAND Flash Memory Values 3.3V x1, x21, x4 104MHz 1-bit 9.6ns 104MT/s 1ms (maximum value) 1ms (maximum value) FEATURES  Voltage Supply: 3.3V (2.7V~3.
