M12L64164A-6BG2Y

1M x 16 Bit x 4 Banks Synchronous DRAM

M12L64164A-6BG2Y Features

* y JEDEC standard 3.3V power supply y LVTTL compatible with multiplexed address y Four banks operation y MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) y All inputs are sampled at the positive going edge of the

M12L64164A-6BG2Y General Description

The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits. Synchronous design allows precise cycle controls wit.

M12L64164A-6BG2Y Datasheet (1.22 MB)

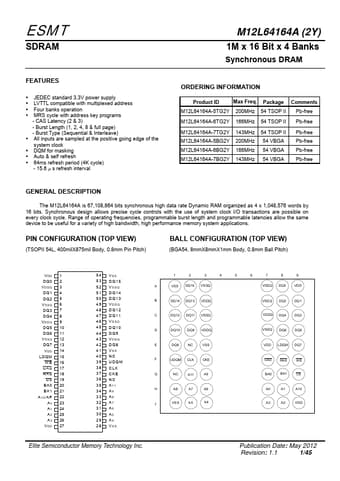

Preview of M12L64164A-6BG2Y PDF

Datasheet Details

Part number:

M12L64164A-6BG2Y

Manufacturer:

ESMT

File Size:

1.22 MB

Description:

1m x 16 bit x 4 banks synchronous dram.
