M14D2561616A-1.8BBG2S, M14D2561616A DDR-II SDRAM

ESMT

Description

ESMT DDR II SDRAM (Preliminary) M14D2561616A (2S) 4M x 16 Bit x 4 Banks DDR II SDRAM .

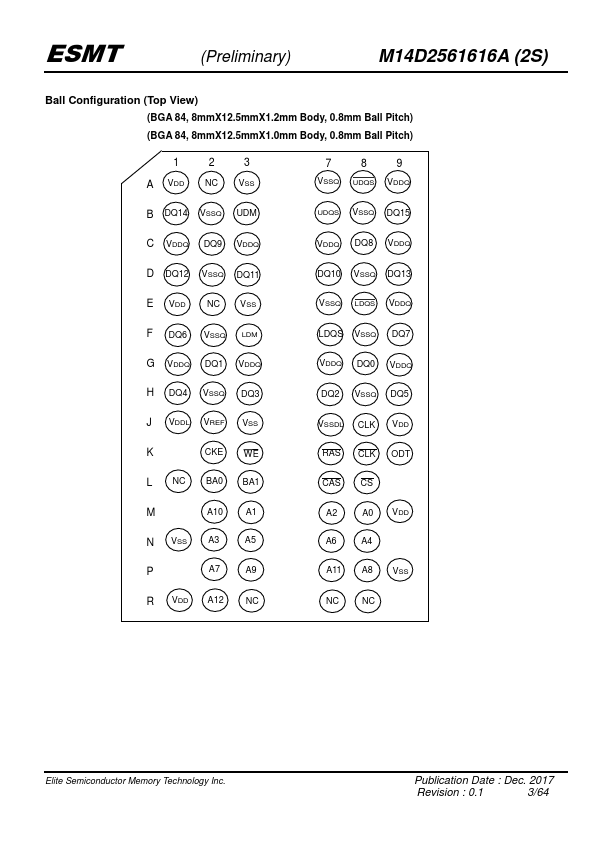

Ball Name A0~A12, BA0,BA1 DQ0~DQ15 RAS CAS WE VSS VDD DQS, DQS (LDQS, LDQS UDQS, UDQS ) ODT NC Function Address inputs - Row address A0~A12 - Column.

📥 Download Datasheet

M14D2561616A-1.8BBG2S Datasheet Preview — This datasheet PDF includes multiple part numbers: M14D2561616A-1.8BBG2S, M14D2561616A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M14D2561616A-1.8BBG2S, M14D2561616A
Manufacturer: ESMT
File Size: 1.05 MB
Datasheet: M14D2561616A-ESMT.pdf
Description: DDR-II SDRAM
Note: This datasheet PDF includes multiple part numbers: M14D2561616A-1.8BBG2S, M14D2561616A.
Please refer to the document for exact specifications by model.

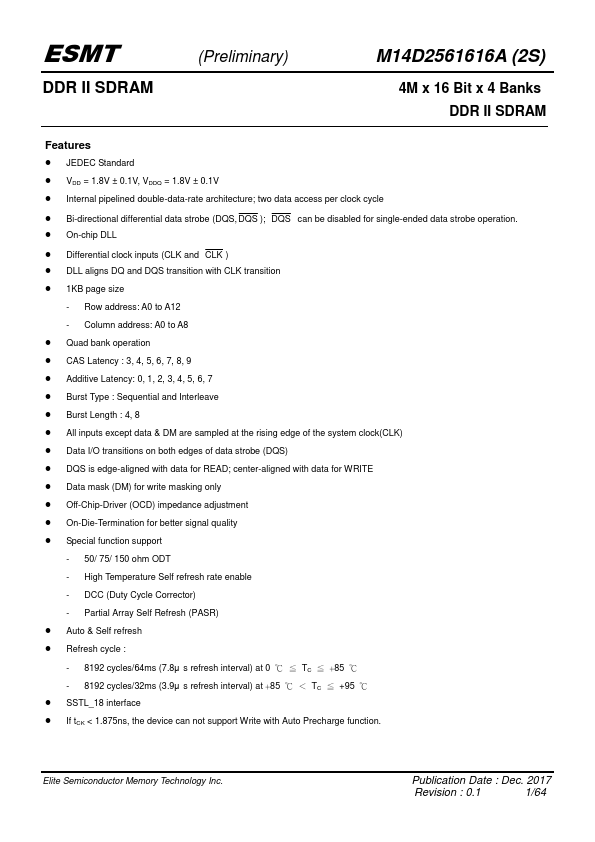

Features

* JEDEC Standard VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V Internal pipelined double-data-rate architecture; two data access per clock cycle Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation. On-chip DLL Differential clock inputs (CLK and CLK )
