M14D2561616A-1.8BG2C Overview
Auto Precharge BA0, BA1 : Bank selects (4 Banks) Data-in/Data-out mand input mand input mand input Ground Power Bi-directional.

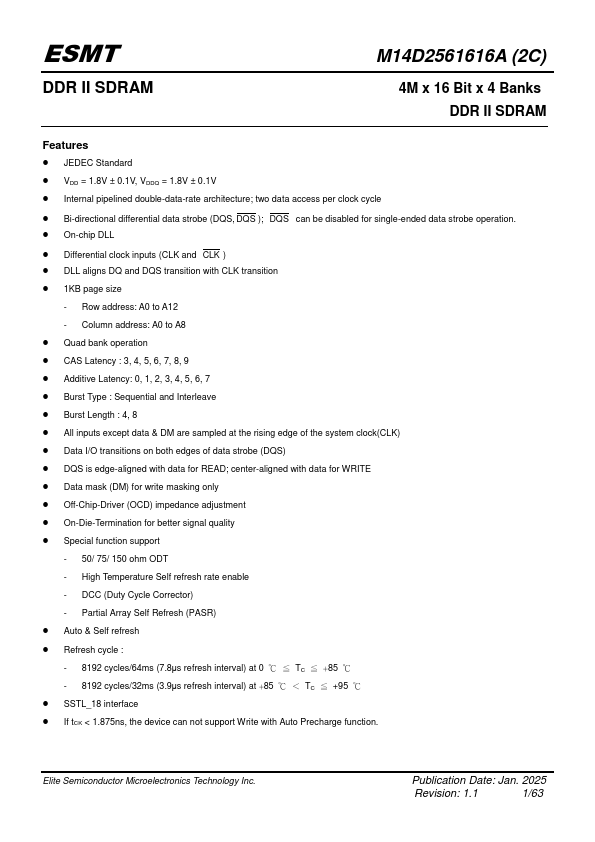

M14D2561616A-1.8BG2C Key Features
- JEDEC Standard
- VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V
- Internal pipelined double-data-rate architecture; two data access per clock cycle
- Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation
- On-chip DLL
- Differential clock inputs (CLK and CLK )
- DLL aligns DQ and DQS transition with CLK transition
- 1KB page size
- Row address: A0 to A12
- Column address: A0 to A8
