M14D2561616A-1.8BG2S Datasheet 4M x 16 Bit x 4 Banks DDR II SDRAM

Manufacturer: ESMT (Elite Semiconductor Microelectronics Technology)

Download the M14D2561616A-1.8BG2S datasheet PDF. This datasheet also includes the M14D2561616A variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

M14D2561616A-1.8BG2S 4m x 16 bit x 4 banks ddr ii sdram by ESMT (Elite Semiconductor Microelectronics Technology) - Datasheet Preview — Note: The manufacturer provides a single datasheet file (M14D2561616A-ESMT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	M14D2561616A-1.8BG2S
Manufacturer	ESMT (Elite Semiconductor Microelectronics Technology)
File Size	1.57 MB
Description	4M x 16 Bit x 4 Banks DDR II SDRAM
Download	M14D2561616A-1.8BG2S Download (PDF)

Overview

ESMT DDR II SDRAM M14D2561616A (2S) 4M x 16 Bit x 4 Banks DDR II.

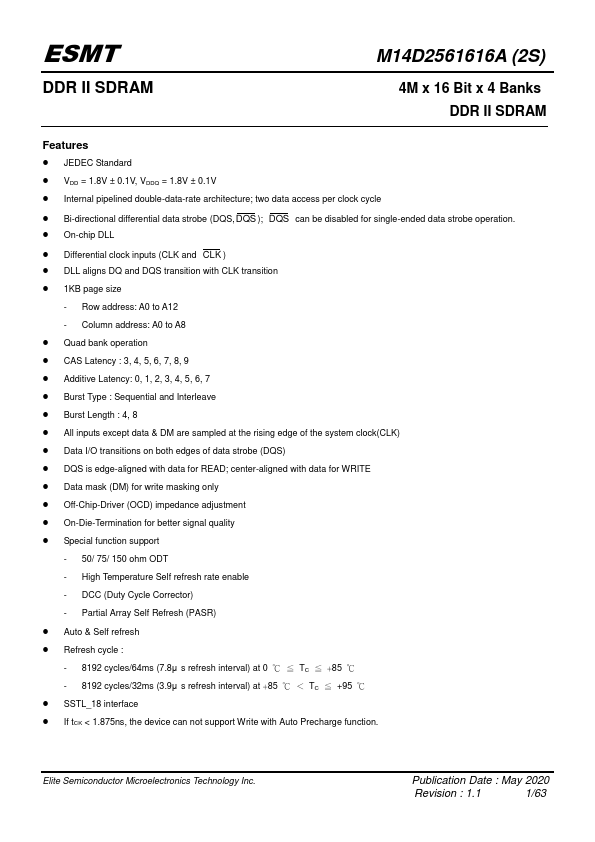

Key Features

JEDEC Standard.
VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V.
Internal pipelined double-data-rate architecture; two data access per clock cycle.
Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
On-chip DLL.
Differential clock inputs (CLK and CLK ).
DLL aligns DQ and DQS transition with CLK transition.
1KB page size - Row address: A0 to A12 - Column address: A0 to A8.
Quad bank operation.
