M16U4G16256A - DDR4 SDRAM

📥 Download Datasheet

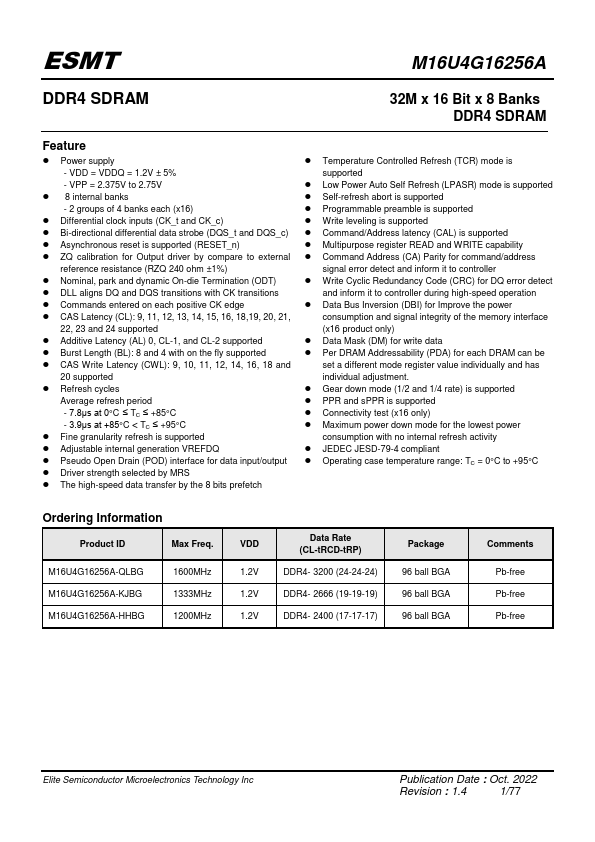

Preview of M16U4G16256A PDF

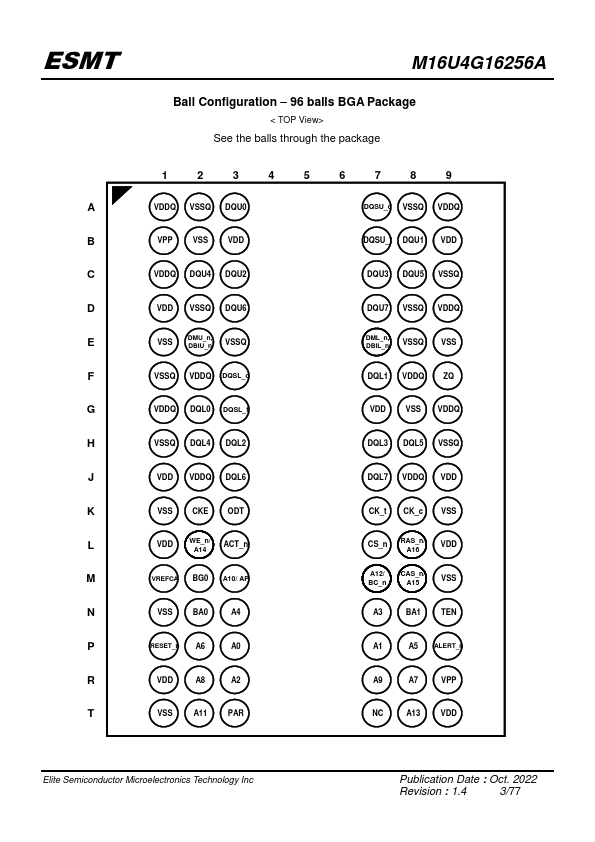

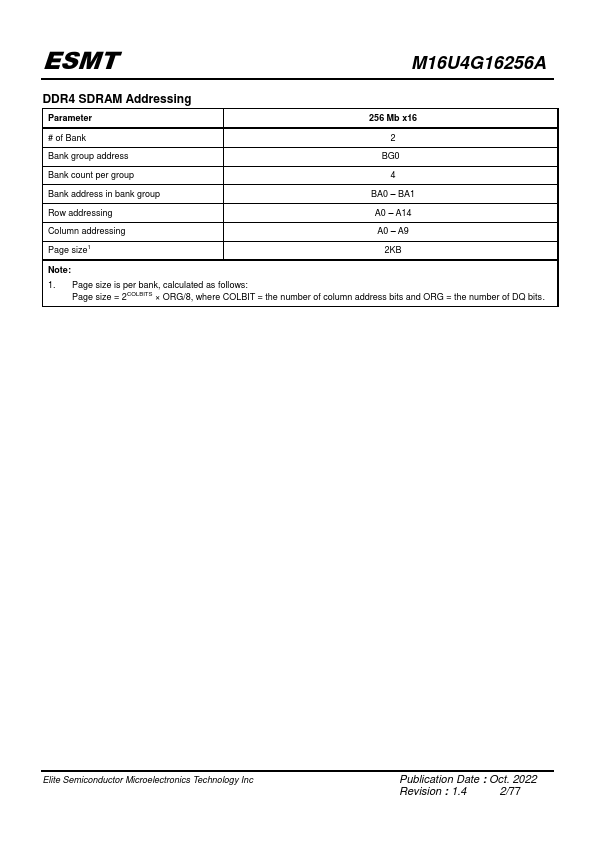

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number M16U4G16256A
Manufacturer ESMT
File Size 2.14 MB
Description DDR4 SDRAM
Datasheet download datasheet M16U4G16256A-ESMT.pdf

M16U4G16256A Product details

Description

Symbol CK_t, CK_c CKE Type Input Input Function Clock: CK_t and CK_c are differential clock inputs.All address and control input signals are sampled on the crossing of the positive edge of CK_t and negative edge of CK_c.Clock Enable: CKE HIGH activates, and CKE Low deactivates, internal clock signals and device input buffers and output drivers.Taking CKE Low provides Precharge Power-Down and Self-Refresh operation (all banks idle), or Active Power-Down (row Active in any bank).CKE is
