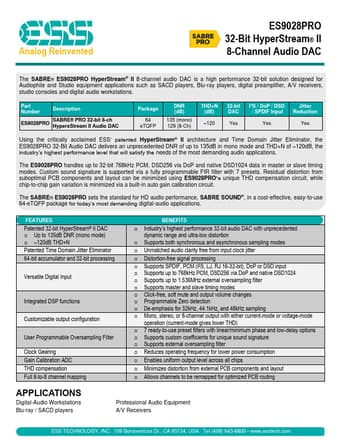

ES9028PRO - 8-Channel Audio DAC

📥 Download Datasheet

General Description

ES9028PRO SABRE® PRO 32-bit 8-ch HypersStream II Audio DAC Package 64 eTQFP DNR (dB) 135 (mono) 129 (8-Ch) THD+N (dB) –120 32-bit DAC Yes I2S / DoP / DSD Jitter / SPDIF Input Reduction Yes Yes Using the critically acclaimed ESS’ patented HyperStream® II architecture and Time Domain Jitter Eliminator, the ES9028PRO 32-Bit Audio DAC delivers an unprecedented DNR of up to 135dB in mono mode and THD+N of –120dB, the industry’s highest performance level that will satisfy the needs of the most demanding audio applications.

The ES9028PRO handles up to 32-bit 768kHz PCM, DSD256 via DoP and native DSD1024 data in master or slave timing modes.

Custom sound signature is supported via a fully programmable FIR filter with 7 presets.

Overview

Analog Reinvented ES9028PRO 32-Bit HyperStream® II 8-Channel Audio DAC The SABRE® ES9028PRO HyperStream® II 8-channel audio DAC is a high performance 32-bit solution designed for Audiophile and Studio equipment applications such as SACD players, Blu-ray players, digital preamplifier, A/V receivers, studio consoles and digital audio workstations.

Key Features

  • Patented 32-bit HyperStream® II DAC o Up to 135dB DNR (mono mode) o.
  • 120dB THD+N Patented Time Domain Jitter Eliminator 64-bit accumulator and 32-bit processing Versatile Digital Input Integrated DSP functions Customizable output configuration User Programmable Oversampling Filter Clock Gearing Gain Calibration ADC THD compensation Full 8-to-8 channel mapping.
