ETA1655 Datasheet - ETA

ETA1655, High Efficiency Synchronous Step-Down Converter

ETA1655 18V, 4.5A, High Efficiency Synchronous Step-Down Converter in FCDFN2x2-6 .
FEATURES ETA1655 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 4.
 datasheet Preview Page 1 from Datasheet4u.com

ETA1655-ETA.pdf

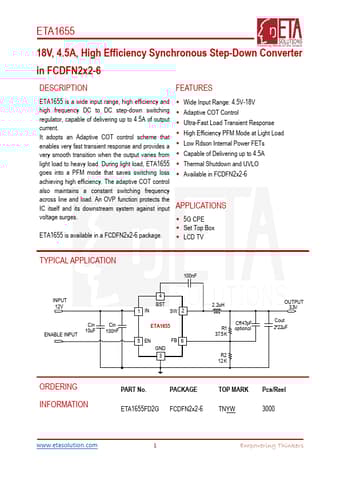

Preview of ETA1655 PDF

Datasheet Details

Part number:

ETA1655

Manufacturer:

ETA

File Size:

545.54 KB

Description:

High Efficiency Synchronous Step-Down Converter

Features

* ETA1655 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 4.5A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output vari

Applications

* 5G CPE
* Set Top Box
* LCD TV TYPICAL APPLICATION INPUT 12V Cin ENABLE INPUT 10uF Cin 100nF 100nF 4 BST 1 IN SW 2 ETA1655 5 EN FB 6 GND 3 2.2uH Cff 47pF R1 optional 37.5 K R2 12 K OUTPUT 3.3V Cout 2
* 22uF ORDERING INFORMATION PART No. PACKAGE ETA1655FD2G FCDFN2x2
