ETA2237, 17V/6A High Efficiency Synchronous Step-Down Converter

ETA2237 17V/6A High Efficiency Synchronous Step-Down Converter .
FEATURES ETA2237 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 6A ou.

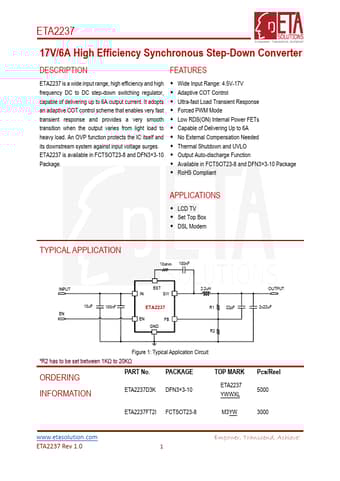

datasheet Preview Page 1 from Datasheet4u.com

ETA2237-ETA.pdf

ETA2237 Datasheet Preview — Preview of ETA2237 PDF

Datasheet Details

Part number:

ETA2237

Manufacturer:

ETA

File Size:

1.37 MB

Description:

17V/6A High Efficiency Synchronous Step-Down Converter

Features

* ETA2237 is a wide input range, high efficiency and high frequency DC to DC step-down switching regulator, capable of delivering up to 6A output current. It adopts an adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies fr

Applications

* LCD TV
* Set Top Box
* DSL Modem TYPICAL APPLICATION 10ohm 100nF INPUT 10uF 100nF EN BST IN SW ETA2237 EN FB GND 2.2uH R1 22pF R2 OUTPUT 2x22uF Figure 1: Typical Application Circuit
* R2 has to be set between 1KΩ to 20KΩ ORDERING INFORMATION PART No. PACKAGE ET
