ETA6096 2.5A Switching Mode Battery Charger

ETA6096 is a high efficiency, switching Li-Ion battery charger capable of delivering up to 2.5A of charging current to the battery. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for conventional constant current control, maximizing efficiency, reducing.

ETA6096 Features

* Switching Charger

* 32V Input Standoff Voltage

* Input Over Voltage Protection

* 60ns Fast OVP Transient Response

* Up to 94% Efficiency

* Up to 2.5A Max charging current

* No-Battery detection

* No External Sense Resistor

* DFN3x3-10 Package

* RoHS Complian

ETA6096-ETA.pdf

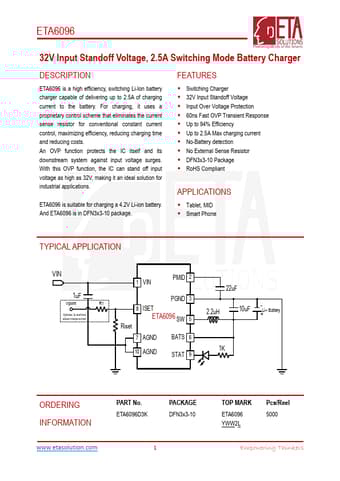

ETA6096 Datasheet Preview — Preview of ETA6096 PDF

Datasheet Details

Part number:

ETA6096

Manufacturer:

ETA

File Size:

438.29 KB

Description:

2.5a switching mode battery charger.
