ETA9338

Tiny PMU

ETA9338 Features

* Up to 96% Efficiency

* Up to 1A Max Output Current

* 1.5MHz Frequency

* Light Load operation

* Internal Compensation

* Tiny DFN3x3-12L Package APPLICATIONS

* IP CAM, Security CAM

* MIDs, Tablet PC

* Set Top Boxes

* USB ports/Hubs

* Other Battery Powered

ETA9338 General Description

The ETA9338 is a Power Management Unit (PMU) with 3 channels of high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 1.5A of output current. The devices operate from an input voltage range of 2.6V to 5.5V and provide output voltages from 0.6V to VIN, making the ETA933.

ETA9338 Datasheet (1.11 MB)

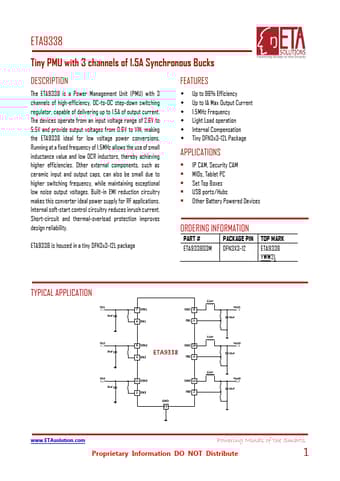

Preview of ETA9338 PDF

Datasheet Details

Part number:

ETA9338

Manufacturer:

ETA

File Size:

1.11 MB

Description:

Tiny pmu.
