12MBI50VX-120-50 Datasheet - ETC

12MBI50VX-120-50 Power Devices (IGBT)

6 IGBT V 6th Gen. IGBT Module V-series A compact design allows for greater power output High performance 6th gen. IGBT/FWD chipset Tj(max.)=175°C, Tj(op)=150°C Environmentally friendly modules Easy assemblage, solder free options RoHS compliant Turn-on switching characteristics Improved noise-loss trade-off Reduced turn-on dv/dt, excellent turn-on dic/dt Turn-off switching characteristic Soft switching behavior, turn-off oscillation free 125 600V-1.

12MBI50VX-120-50 Datasheet (503.65 KB)

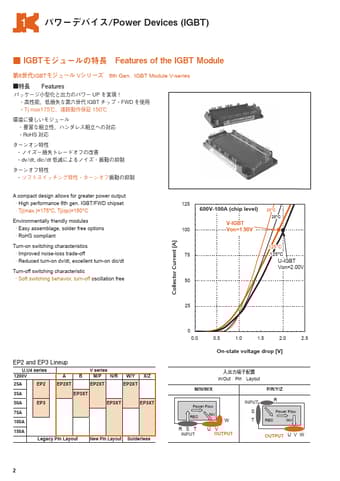

Preview of 12MBI50VX-120-50 PDF

Datasheet Details

Part number:

12MBI50VX-120-50

Manufacturer:

ETC

File Size:

503.65 KB

Description:

Power devices (igbt).
