17HA4605N - Hybrid Stepper Motors

Product Overview

Part number	17HA4605N
Manufacturer	ETC
File Size	103.18 KB
Description	Hybrid Stepper Motors
Datasheet	17HA4605N Datasheet
Note	This datasheet PDF includes multiple part numbers: 17HA4605N, 17HA0403-44N. Please refer to the document for exact specifications by model.

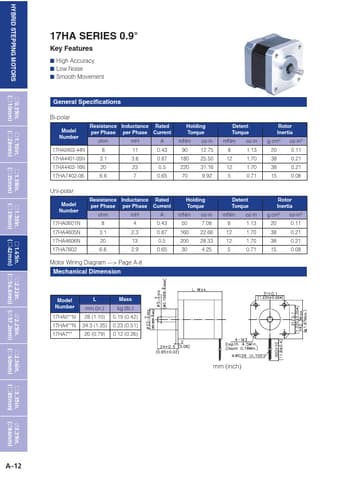

Additional preview pages of the 17HA4605N datasheet.

I High Accuracy I Low Noise I Smooth Movement General Speciﬁcations Bi-polar Model Number Resistance Inductance Rated per Phase per Phase Current ohm mH A 17HA0403-44N 8 11 0.43 17HA4401-05N 3.1 3.6 0.87 17HA4402-16N 20 23 0.5 17HA7402-06 6.6 7 0.65 Holding Torque mNm oz-in 90 12.75 180 25.50 220 31.16 70 9.92 Detent Torque mNm oz-in 8 1.13 12 1.70 12 1.70 5 0.71 Rotor Inertia g. cm2 oz-in2 20 0.11 38 0.21 38 0.21 15 0.08 Uni-polar Model Number 17HA0601N 17HA4605N 17HA4606N 17.
