20F001N 10 Base T Filter with Common Choke

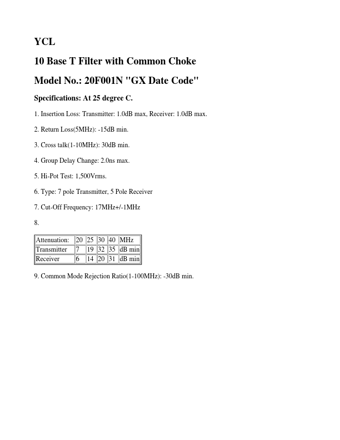

YCL 10 Base T Filter with Common Choke Model No.: 20F001N "GX Date Code" Specifications: At 25 degree C. 1. Insertion Loss: Transmitter: 1.0dB max, Receiver: 1.0dB max. 2. Return Loss(5MHz): -15dB min. 3. Cross talk(1-10MHz): 30dB min. 4. Group Delay Change: 2.0ns max. 5. Hi-Pot Test: 1,500Vrms. 6. Type: 7 pole Transmitter, 5 Pole Receiver 7. Cut-Off Frequency: 17MHz+/-1MHz 8. Attenuation: Transmitter Receiver 20 25 30 40 MHz 7 19 32 35 dB min 6 14 20 31 dB min 9. Common Mode Rejection Ratio(1-.
