2N5463 - P-channel FET

2N5463 Description

2N5460 (SILICON) thru 2N5465 P-channel depletion mode (Type A) junction fieldeffect transistors designed for use in general-purpose amplifier applica.

2N5463 Applications

* MAXIMUM RATINGS Rating 2N5460 2N5463 2N5461 2N5464 Symbol 2N5462 2N5465 Unit Drain-Gate Voltage VDG 40 60 Vdc Reverse Gate-Source Voltage VGS(r) 40 60 Vdc Forward Gate Current IG(f) 10 mAdc CASE 29 e (TO-92l 1 1 3 STYLE 7
* PIN 1 SOURCE 1 DRAIN 3. GATE Total Device Dissipation @ T

📥 Download Datasheet

Preview of 2N5463 PDF

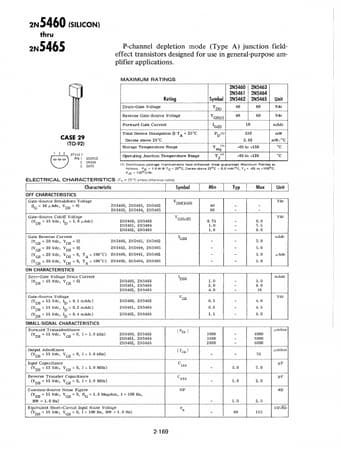

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N5463
Manufacturer
ETC
File Size
214.40 KB
Datasheet
2N5463-ETC.pdf
Description
P-channel FET
