2N5466 - NPN Transistor

2N5466 Description

isc Silicon NPN Power Transistor .
Excellent Safe Operating Area. Low Collector-Emitter Saturation Voltage. The device employs the popular JEDEC TO-3. 100% avalanche te.

2N5466 Applications

* High voltage high current power transistors ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO VCEO VEBO IC PC TJ Tstg Collector-Base Voltage 500 V Collector-Emitter Voltage 400 V Emitter-Base Voltage 7 V Collector Current-Continuous 3 A Collector Power Dissipa

📥 Download Datasheet

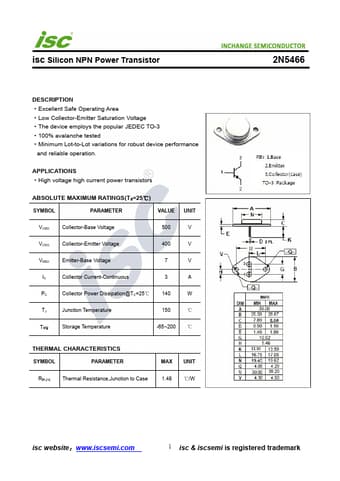

Preview of 2N5466 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N5466
Manufacturer
INCHANGE
File Size
178.76 KB
Datasheet
2N5466-INCHANGE.pdf
Description
NPN Transistor
