2N5109 - NPN Transistor

Product Overview

📥 Download Datasheet

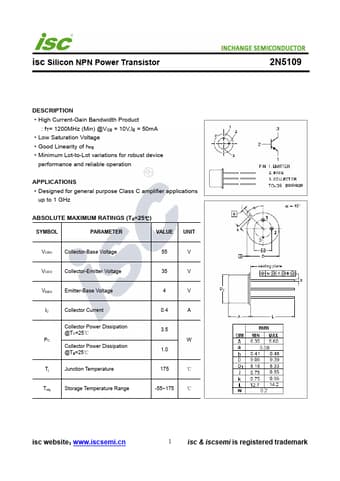

Datasheet preview – 2N5109

Datasheet Details

Part number 2N5109
Manufacturer INCHANGE
File Size 183.99 KB
Description NPN Transistor
Datasheet download datasheet 2N5109 Datasheet
Additional preview pages of the 2N5109 datasheet.

Product details

Description

High Current-Gain Bandwidth Product : fT= 1200MHz (Min) @VCE = 10V,IE = 50mA Low Saturation Voltage Good Linearity of hFE Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for general purpose Class C amplifier applications up to 1 GHz ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 55 V VCEO Collector-Emitter Voltage 35 V VEBO Emitter-Base Voltage 4 V IC Co
