2N5202 - NPN Transistor

Datasheet Summary

Description

Collector-emitter sustaining voltage VCEO(SUS)= 90V(Min) High saturation voltage Wide area of safe operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in high-current, high-speed switching circuits such

📥 Download Datasheet

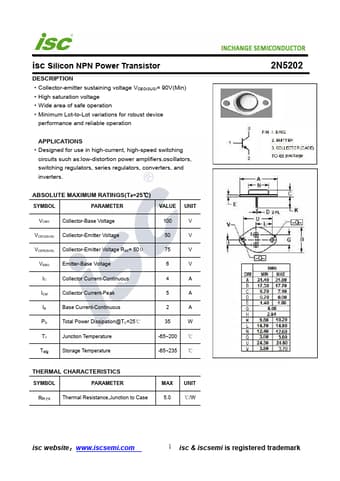

Datasheet preview – 2N5202

Datasheet Details

Part number 2N5202
Manufacturer INCHANGE
File Size 180.88 KB
Description NPN Transistor
Datasheet download datasheet 2N5202 Datasheet
Additional preview pages of the 2N5202 datasheet.

📁 Similar Datasheet

  • 2N5202 - NPN Transistor (Central Semiconductor)
  • 2N5202 - Power Transistors (RCA)
  • 2N5204 - 25 and 35 Amp RMS SCRs (Knox Semiconductor Inc)
  • 2N5204 - 25 and 35 Amp RMS SCRs (International Rectifier)
  • 2N5204 - SILICON CONTROLLED RECTIFIER (Digitron Semiconductors)
  • 2N5204 - SCR (Solid State)
  • 2N5205 - 25 and 35 Amp RMS SCRs (Knox Semiconductor Inc)
  • 2N5205 - 25 and 35 Amp RMS SCRs (International Rectifier)
  • 2N5205 - SILICON CONTROLLED RECTIFIER (Digitron Semiconductors)
  • 2N5205 - SCR (Solid State)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor DESCRIPTION ·Collector-emitter sustaining voltage VCEO(SUS)= 90V(Min) ·High saturation voltage ·Wide area of safe operation ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in high-current, high-speed switching circuits such as:low-distortion power amplifiers,oscillators, switching regulators, series regulators, converters, and inverters.
