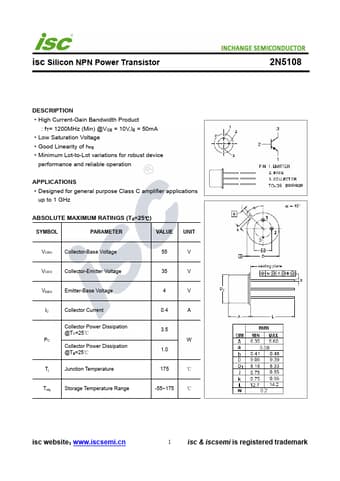

2N5108 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2N5108

Manufacturer:

INCHANGE

File Size:

184.06kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

High Current-Gain Bandwidth Product : fT= 1200MHz (Min) @VCE = 10V,IE = 50mA

Low Saturation Voltage

Good L

2N5108 Application

• Applications
• Designed for general purpose Class C amplifier applications up to 1 GHz ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER
