2N6368 NPN SILICON RF POWER TRANSISTOR

2N6368 Description

2N6368 (SILICON) The RF Line NPN SILICON RF POWER TRANSISTOR * ..designed primarily for applications as a high *power linear ampli * fier .

2N6368 Applications

* as a high
* power linear ampli
* fier from 2.0 to 30 MHz.
* Optimized for Operation from a 12.5 Volt Supply
* Power Output @ 12.5 Vdc, 30 MHz = 40 W (PEP)
* Power Gain @ 30 MHz = 10 dB (Min)
* Intermodulation Distortion at Rated Power Output - IMD = -30 dB (Max)

📥 Download Datasheet

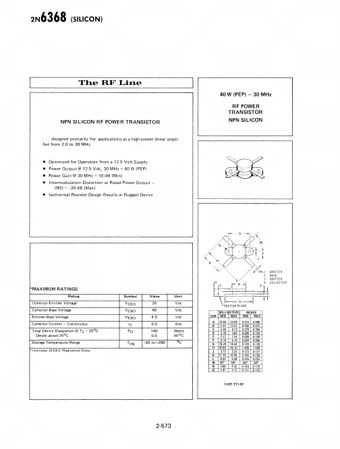

Preview of 2N6368 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N6368
Manufacturer
ETC
File Size
449.18 KB
Datasheet
2N6368-ETC.pdf
Description
NPN SILICON RF POWER TRANSISTOR
