2N6443, 2N6441, NPN SILICON MONOLITHIC MULTIPLE TRANSISTORS

2N6441 (SILICON) thru 2N6448 MULTIPLE SILICON ANNULAR MONOLITHIC TRANSISTORS designed for use as differential amplifiers, dual general-purpose amplif.

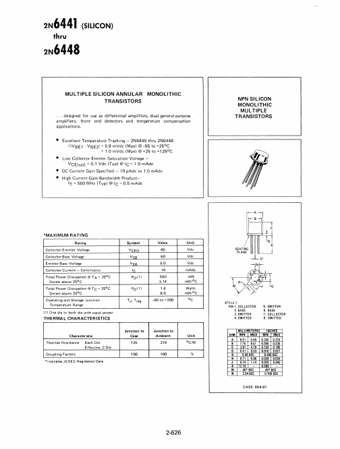

datasheet Preview Page 1 from Datasheet4u.com

2N6441-ETC.pdf

2N6443 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N6443, 2N6441. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N6443, 2N6441

Manufacturer:

ETC

File Size:

264.33 KB

Description:

NPN SILICON MONOLITHIC MULTIPLE TRANSISTORS

Note:

This datasheet PDF includes multiple part numbers: 2N6443, 2N6441.
Please refer to the document for exact specifications by model.

Applications

* Excellent Temperature Tracking - 2N6445 thru 2N6448 "'IVBEl - VBE21 = 0.8 mVdc (Maxi @-55 to +250 C = 1.0 mVdc (Maxi @+25 to +1250 C
* Low Collector-Emitter Saturation Voltage - VCE(satl = 0.1 Vdc (Typl @ IC = 1.0 mAdc
* DC Current Gain Specified - 10 !lAdc to 1.0 mAdc
