2N6446, 2N6441 NPN SILICON MONOLITHIC MULTIPLE TRANSISTORS

Description

2N6441 (SILICON) thru 2N6448 MULTIPLE SILICON ANNULAR MONOLITHIC TRANSISTORS designed for use as differential amplifiers, dual general-purpose amplif.

📥 Download Datasheet

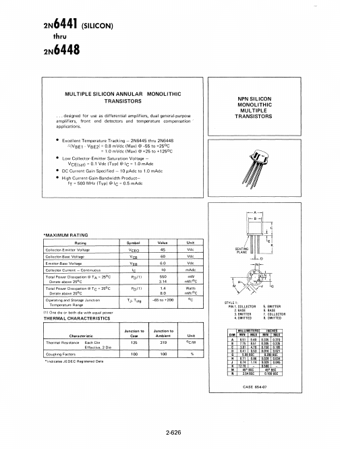

2N6446 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N6446, 2N6441. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2N6446, 2N6441
Manufacturer: ETC
File Size: 264.33 KB
Datasheet: 2N6441-ETC.pdf
Description: NPN SILICON MONOLITHIC MULTIPLE TRANSISTORS
Note: This datasheet PDF includes multiple part numbers: 2N6446, 2N6441.
Please refer to the document for exact specifications by model.

Applications

* Excellent Temperature Tracking - 2N6445 thru 2N6448 "'IVBEl - VBE21 = 0.8 mVdc (Maxi @-55 to +250 C = 1.0 mVdc (Maxi @+25 to +1250 C
* Low Collector-Emitter Saturation Voltage - VCE(satl = 0.1 Vdc (Typl @ IC = 1.0 mAdc
* DC Current Gain Specified - 10 !lAdc to 1.0 mAdc
