2N6445, 2N6441 NPN SILICON MONOLITHIC MULTIPLE TRANSISTORS

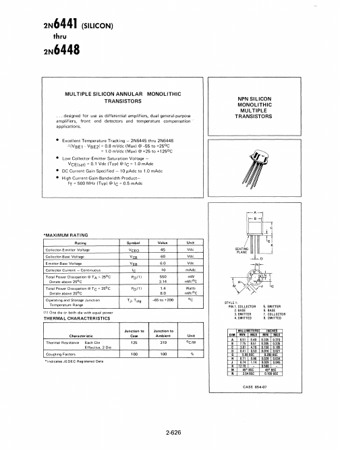

📥 Download Datasheet  Datasheet Preview Page 1

Description

2N6441 (SILICON) thru 2N6448 MULTIPLE SILICON ANNULAR MONOLITHIC TRANSISTORS designed for use as differential amplifiers, dual general-purpose amplif.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N6445, 2N6441. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2N6445, 2N6441
Manufacturer
ETC
File Size
264.33 KB
Datasheet
2N6441-ETC.pdf
Description
NPN SILICON MONOLITHIC MULTIPLE TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: 2N6445, 2N6441.
Please refer to the document for exact specifications by model.

Applications

* Excellent Temperature Tracking - 2N6445 thru 2N6448 "'IVBEl - VBE21 = 0.8 mVdc (Maxi @-55 to +250 C = 1.0 mVdc (Maxi @+25 to +1250 C
* Low Collector-Emitter Saturation Voltage - VCE(satl = 0.1 Vdc (Typl @ IC = 1.0 mAdc
* DC Current Gain Specified - 10 !lAdc to 1.0 mAdc
