5611-BSR - Seven segment LED display

Datasheet Summary

Features

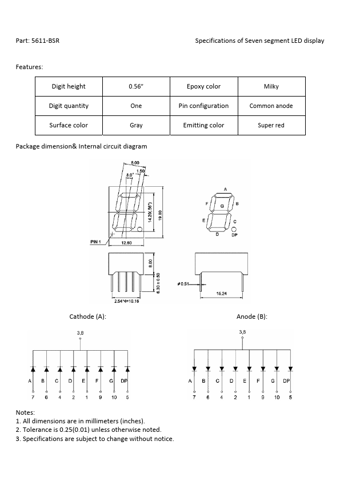

Digit height 0.56” Digit quantity One Surface color Gray Package dimension& Internal circuit diagram Specifications of Seven segment LED display Epoxy color Pin configuration Emitting color Milky Common anode Super red Cathode (A): Anode (B): Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is 0.25(0.01) unless otherwise noted. 3. Specifications are subject to change without notice. .
