AC1501

PWM Buck DC/DC Converter

AC1501 Features

* - Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output voltage range, 1.23V to 37V+4% - 150Khz +15% fixed switching frequency - Voltage mode non-synchronous PWM control - Thermal-shutdown and current-limit protection - ON/OFF shutdown control input - Operating volt

AC1501 General Description

The AP1501 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor component. Due to reducing the number of external component, the board space can be saved easily. The external shutdown function can be controlled b.

AC1501 Datasheet (227.38 KB)

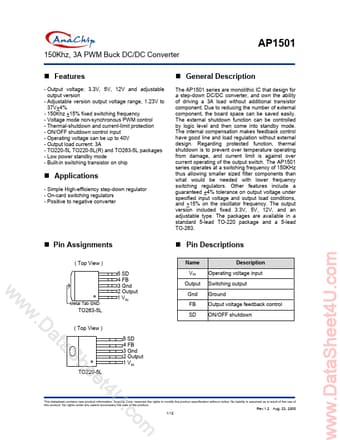

Preview of AC1501 PDF

Datasheet Details

Part number:

AC1501

Manufacturer:

ETC

File Size:

227.38 KB

Description:

Pwm buck dc/dc converter.
