BCJ-BPC2P, BCJ-BPLH - BNC PCB Mount Receptacles

The BCJ-BPC2P by ETC is a BNC PCB Mount Receptacles. Below is the official datasheet preview.

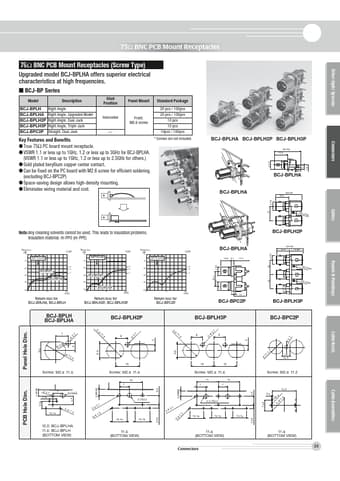

BCJ-BPC2P BNC PCB Mount Receptacles by ETC - Datasheet Preview — Official preview page of the **BCJ-BPC2P** BNC PCB Mount Receptacles datasheet (ETC).

Datasheet Details

Part number	BCJ-BPC2P, BCJ-BPLH
Manufacturer	ETC
File Size	142.57 KB
Description	BNC PCB Mount Receptacles
Datasheet	BCJ-BPLH-ETC.pdf
Note	This datasheet PDF includes multiple part numbers: BCJ-BPC2P, BCJ-BPLH. Please refer to the document for exact specifications by model.
Additional preview pages of the BCJ-BPC2P datasheet.

BCJ-BPC2P Product details

Description

Right Angle Right Angle, Upgraded Model Right Angle, Dual Jack Right Angle, Triple Jack Straight, Dual Jack Stud Position Panel Mount Standard Package 20 pcs / 100pcs 20 pcs / 100pcs 10 pcs 10 pcs 10pcs / 100pcs Screws are not included. Key

Features

and Beneﬁts.
True 75Ω PC board mount receptacle.
VSWR 1.1 or less up to 1GHz, 1.2 or less up to 3GHz for BCJ-BPLHA. (VSWR 1.1 or less up to 1GHz, 1.2 or less up to 2.5GHz for others. ).
Gold plated beryllium copper center contact.
Can be fixed on the PC board with M2.6 screw for efficient soldering. (excluding BCJ-BPC2P).
Space-saving design allows high-density mounting.
Eliminates wiring material and cost. BCJ-BPLHA BCJ-BPLH2P BCJ-BPLH3P (28.94) 14.5 Connectors.
