BCJ-BPLH - BNC PCB Mount Receptacles

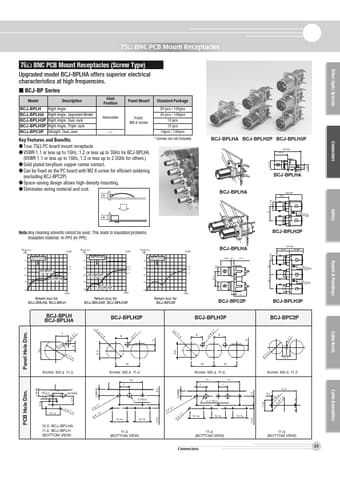

BCJ-BPLH Datasheet Preview — Preview of BCJ-BPLH PDF

Datasheet Details

Part number: BCJ-BPLH
Manufacturer: ETC
File Size: 142.57 KB
Datasheet: BCJ-BPLH-ETC.pdf
Description: BNC PCB Mount Receptacles

BCJ-BPLH Product details

Description

Right Angle Right Angle, Upgraded Model Right Angle, Dual Jack Right Angle, Triple Jack Straight, Dual Jack Stud Position Panel Mount Standard Package 20 pcs / 100pcs 20 pcs / 100pcs 10 pcs 10 pcs 10pcs / 100pcs Screws are not included. Key

Features

and Beneﬁts.
True 75Ω PC board mount receptacle.
VSWR 1.1 or less up to 1GHz, 1.2 or less up to 3GHz for BCJ-BPLHA. (VSWR 1.1 or less up to 1GHz, 1.2 or less up to 2.5GHz for others. ).
Gold plated beryllium copper center contact.
Can be fixed on the PC board with M2.6 screw for efficient soldering. (excluding BCJ-BPC2P).
Space-saving design allows high-density mounting.
Eliminates wiring material and cost. BCJ-BPLHA BCJ-BPLH2P BCJ-BPLH3P (28.94) 14.5 Connectors.
