BT861 - Multiport YCrCb to NTSC / PAL / SECAM Digital Video Encoder

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

1-1 1.1 1.2 Pin Descriptions .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

1-1 Functional Overview .

.

.

.

.

.

Bt860/861 Multiport YCrCb to NTSC / PAL / SECAM Digital Video Encoder The Bt860/861 is a multiport digital video encoder with pixel synchronization and per-pixel blending capabilities.

The three 8-bit YCrCb data ports allow for a variety of video and graphic overlay configurations useful in video set-top box applications.

The Bt860/861 is specifically designed for video systems requiring composite, Y/C (S-Video), and simultaneous component YUV or RGB (SCART) video signals.

Worldwide video standa

BT861 Features

* Six 10-bit DACs with individual power management Simultaneous output of YUV, S-Video, and CVBS, or RGB (SCART), S-Video, and CVBS Current drive output DACs for superior video quality and reduced system cost Dynamic video load sensing for reduced power operation Three sharpness fi

BT861_ETC.pdf

Preview of BT861 PDF

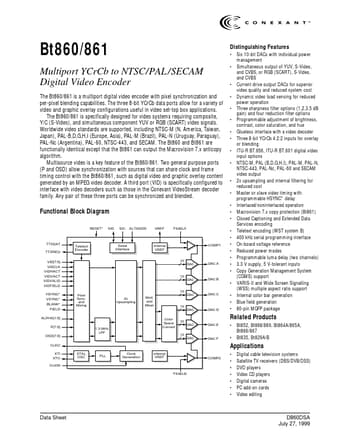

BT861 Datasheet Preview Page 2 BT861 Datasheet Preview Page 3

Datasheet Details

Part number:

BT861

Manufacturer:

ETC

File Size:

1.28 MB

Description:

Multiport ycrcb to ntsc / pal / secam digital video encoder.
