Bt869, Bt868 - Flicker-Free Video Encoder

Bt869 Description

Bt868/Bt869 Flicker-Free Video Encoder with UltrascaleTM Technology The Bt868/869 is specifically designed for video systems requiring the generatio.
at any time, without notice.

Bt869 Features

* Digital RGB or YCrCb non-interlaced input to interlaced or non-interlaced analog TV output modes: YCrCb Modes:
* 16-bit 4:2:2 multiplexed 8-bit
* 24-bit 4:4:4 multiplexed 12-bit
* 24-bit 4:4:4 non-multiplexed 24-bit RGB Modes:
* 15/16 bit 5:6:5 RGB multiplex

Bt869 Applications

* Desktop/Portable PCs with TV-Out
* Living-room PCs
* Internet PC/TVs
* Internet Appliances Data Sheet 100123B September 2000 Ordering Information Model Number Bt868KRF Bt869KRF Package 80-pin PQFP 80-pin PQFP Ambient Temperature Range 0° C to +70° C 0° C to +7

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: Bt869, Bt868. Please refer to the document for exact specifications by model.

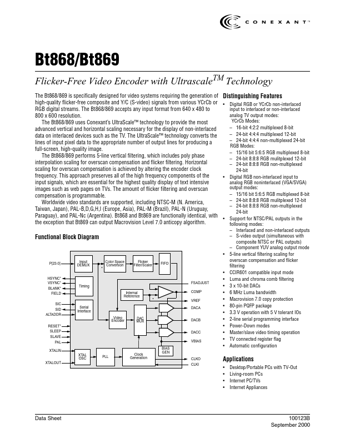

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Bt869, Bt868
Manufacturer
Conexant Systems
File Size
1.94 MB
Datasheet
Bt868-ConexantSystems.pdf
Description
Flicker-Free Video Encoder
Note
This datasheet PDF includes multiple part numbers: Bt869, Bt868.
Please refer to the document for exact specifications by model.
