BT8223 ATM Transmitter/Receiver

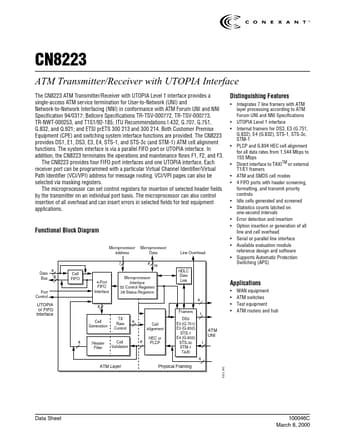

www.DataSheet4U.com CN8223 ATM Transmitter/Receiver with UTOPIA Interface The CN8223 ATM Transmitter/Receiver with UTOPIA Level 1 interface provides a single-access ATM service termination for User-to-Network (UNI) and Network-to-Network Interfacing (NNI) in conformance with ATM Forum UNI and NNI Specification 94/0317; Bellcore Specifications TR-TSV-000772, TR-TSV-000773, TR-NWT-000253, and T1S1/92-185; ITU Recommendations I.432, G.707, G.751, G.832, and Q.921; and ETSI prETS 300 213 and 300 21.

BT8223 Features

* Integrates 7 line framers with ATM layer processing according to ATM Forum UNI and NNI Specifications UTOPIA Level 1 interface Internal framers for DS3, E3 (G.751, G.832), E4 (G.832), STS-1, STS-3c, STM-1 PLCP and G.804 HEC cell alignment for all data rates from 1.544 Mbps to 155 Mbps Dire
